(06-31) - AXLE, REAR - DIFFERENTIAL

Запчасти Case 521D (06-31) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

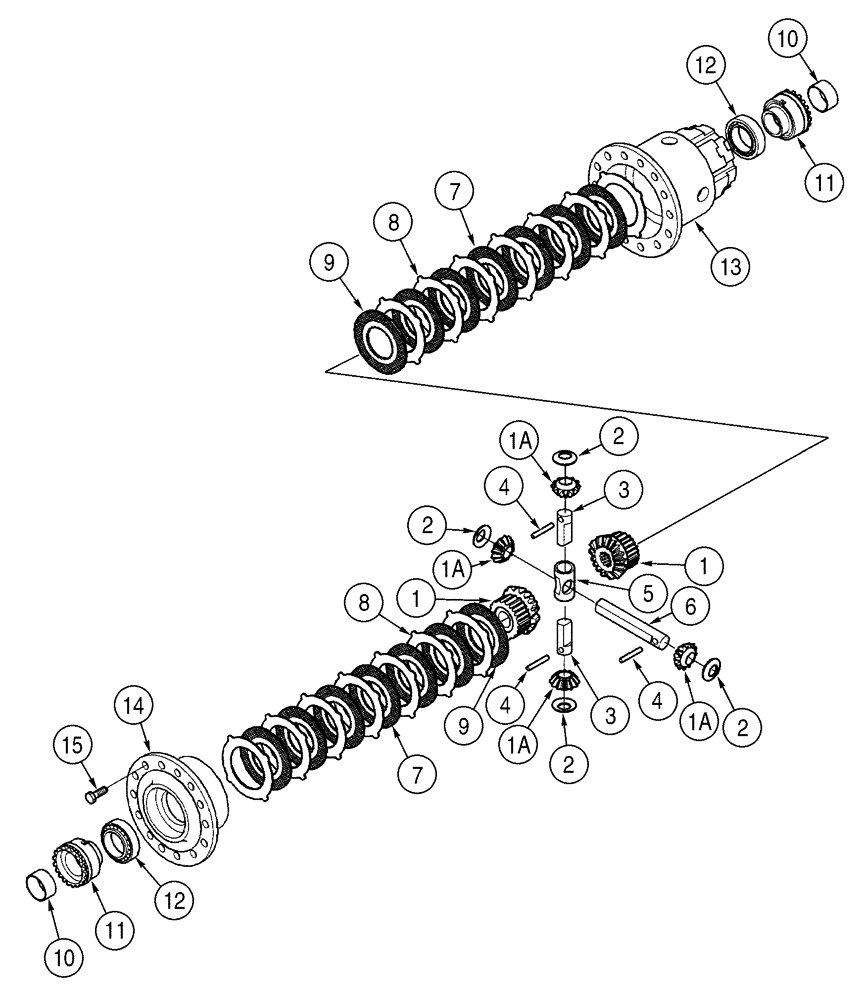

Схема запчастей Case 521D - (06-31) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN
4
7
9
11
5
7
3
1a
2
1a
2
2
13
1
4
10
15
1a
14
1a
9
8
6
11
4
1
8
12
10
3
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

389964A2

AXLE, REAR

AXLE REAR Open Differential; Carraro No. 143841; Incl. Ref 1 - 6, 10 - 16; Also Includes Figures 06-29 - 06-33

1шт.

319777A2

AXLE, REAR

AXLE REAR Limited Slip; Carraro No. 140091; Incl. Ref 1 - 15; Also Includes Figures 06-29 - 06-33

1шт.

409500A1

GEAR-SET

Open Differential; Incl. Ref 1 - 6

1шт.

404048A1

SET

Gear; Limited Slip; Incl. Ref 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Gear, Pinion

2шт.

1a

NSS

NOT SOLD SEPARAT

Gear

4шт.

2

365741A1

THRUST WASHER

4шт.

3

371132A1

PIN

2шт.

4

K965349

PIN

M7 x 65

3шт.

5

371149A1

CROSS PIN

1шт.

6

371133A1

PIN

1шт.

7

371135A1

PLATE

Friction, Limited Slip

12шт.

8

371134A1

PLATE

Separator, Limited Slip

14шт.

9

371136A1

PLATE

Separator, Limited Slip

2шт.

10

100532A1

BUSHING

2шт.

11

371137A1

BEARING CARRIER

Carrier

2шт.

12

371138A1

ROLLER BEARING

2шт.

13

365746A1

HOUSING

1шт.

14

365745A1

COVER

1шт.

15

191820A1

LOCK BOLT,M14 x 40mm, Cl 10.9

M14 x 40

14шт.

16

409596A1

THRUST WASHER

Open Differential; Not Illustrated

2шт.
