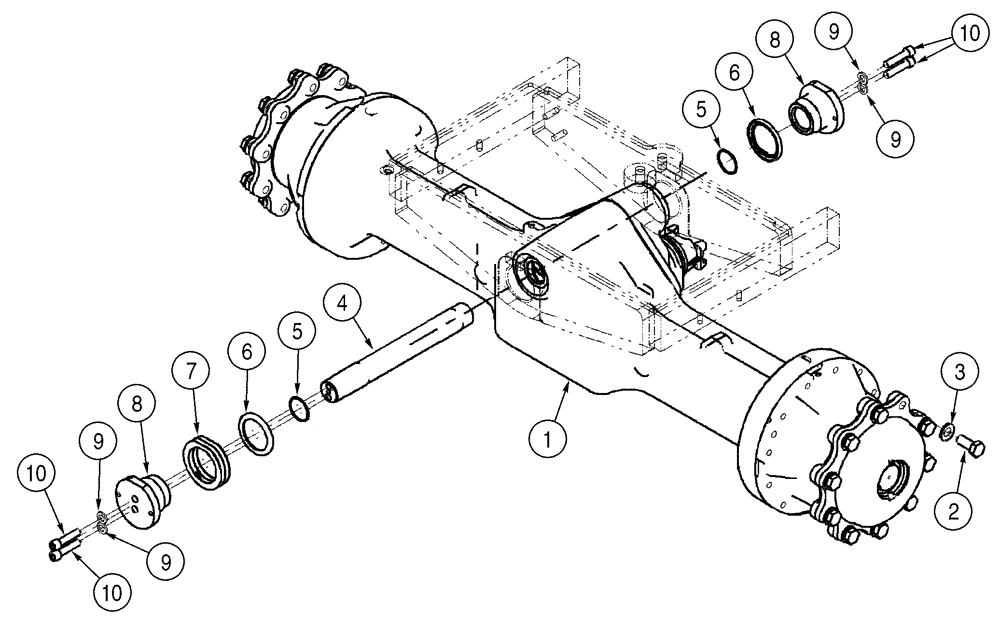

Запчасти Case 521D (06-28) - AXLE, REAR - MOUNTING (06) - POWER TRAIN

1

389964A2

AXLE, REAR

AXLE REAR Open Differential; Carraro No. 143841; Includes Figures 06-29 - 06-33

1шт.

1

319777A2

AXLE, REAR

AXLE REAR Limited Slip; Carraro No. 140091; Includes Figures 06-29 - 06-33

1шт.

2

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

M22 x 1,5 x 50; 10.9

20шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

4

380237A2

PIN

1шт.

5

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

6

A57658

OIL SEAL

2шт.

7

368140A1

SHIM,93.5mm ID x 128mm OD x 0.5mm Thk

1шт.

7

368141A1

SHIM,93.5mm ID x 128mm OD x 1mm Thk

1шт.

7

368142A1

SHIM,93.5mm ID x 128mm OD x 1.5mm Thk

1шт.

8

380236A3

CAP

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

10

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

4шт.
