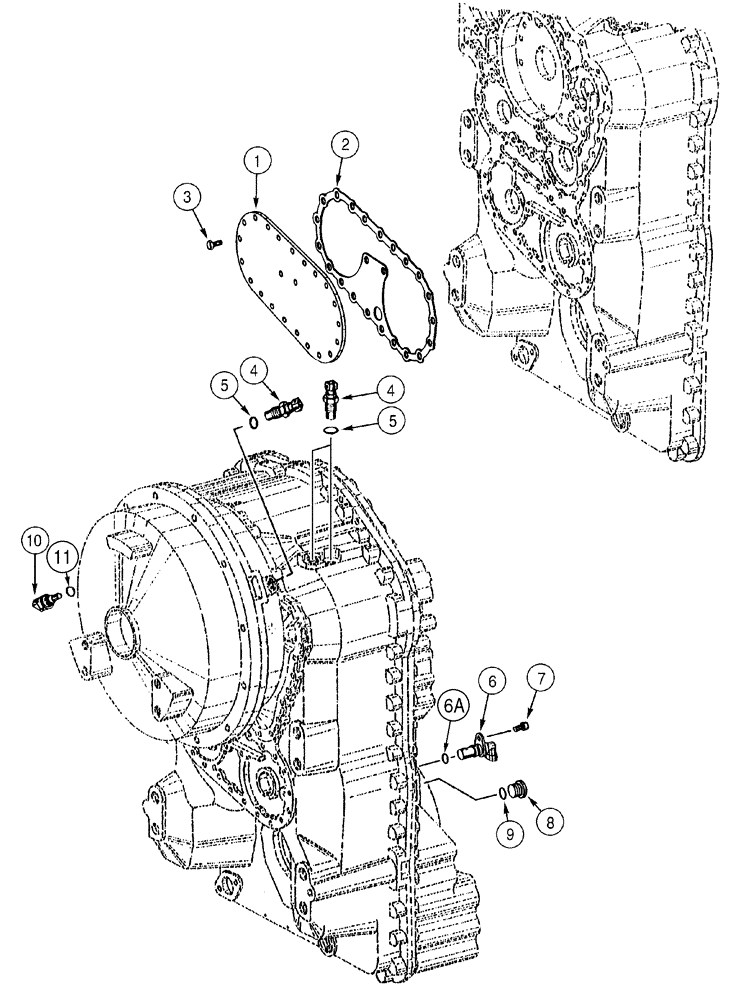

Запчасти Case 521D (06-20) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER (06) - POWER TRAIN

361424A1

TRANSMISSION

ZF No. 4656 024 017; See Figures 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

331307A1

COVER

Steering Pump

1шт.

2

331308A1

GASKET

1шт.

3

331309A1

CAPSCREW,M8 x 18mm

M8 x 18

23шт.

4

331324A1

SENSOR

Inductive Coupling

3шт.

5

S300495

O-RING,2mm Thk x 15mm ID

3шт.

6

331325A1

SENSOR

Speed; Incl. Ref 6A

1шт.

6a

387564A1

O-RING

1шт.

7

331326A1

CAPSCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

1шт.

8

331328A1

PLUG

Incl. Ref 9

1шт.

9

331329A1

O-RING,2mm Thk x 23mm ID

1шт.

10

387101A1

TEMPERATURE SENDER

Incl. Ref 11

1шт.

11

331332A1

O-RING

1шт.
