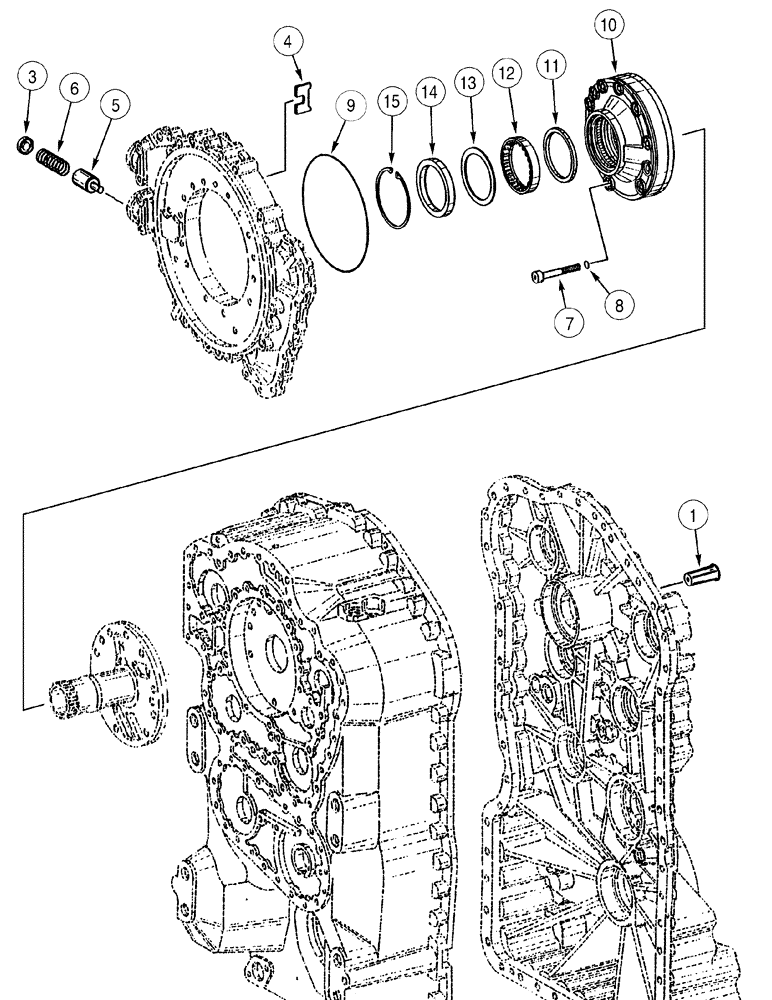

Запчасти Case 521D (06-19) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP (06) - POWER TRAIN

361424A1

TRANSMISSION

ZF No. 4656 024 017; See Figures 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

331017A1

VALVE

Regulator

1шт.

3

331019A1

CUP ASSY.

Pressure Plate

1шт.

4

331020A1

WASHER

Retainer

1шт.

5

331021A1

SPOOL

Piston

1шт.

6

331022A1

COMPRESSION SPRING

1шт.

7

331294A1

CAPSCREW,Flg, 5/16" - 18 x 2", Gr 8

Incl. Ref 8

10шт.

8

331295A1

O-RING

10шт.

9

331296A1

O-RING

1шт.

10

331297A2

PUMP, HYDRAULIC

Oil Pressure

1шт.

11

331298A1

RING

1шт.

12

331300A1

NEEDLE BEARING

1шт.

13

331299A1

SHIM

1шт.

14

331301A1

SEAL

1шт.

15

331302A1

RING, SNAP

RING SNAP

1шт.
