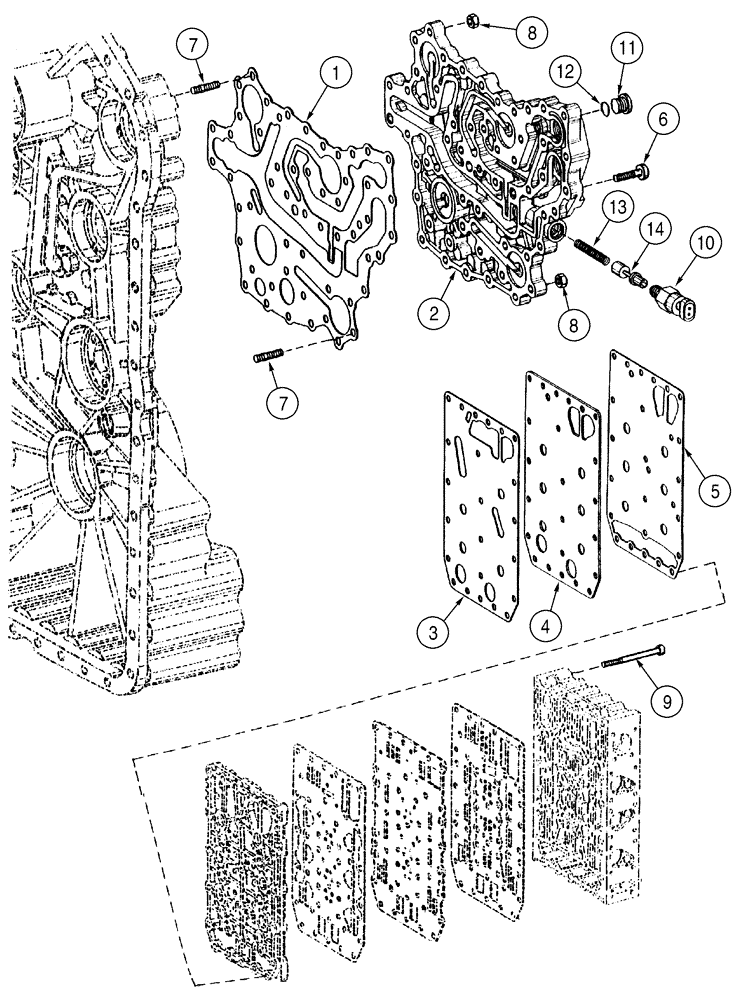

Запчасти Case 521D (06-16) - TRANSMISSION - VALVE PLATES (06) - POWER TRAIN

361424A1

TRANSMISSION

ZF No. 4656 024 017; See Figures 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

404680A1

MANIFOLD GASKET

1шт.

2

404682A1

MANIFOLD

VALVE PLATE

1шт.

3

404683A1

GASKET

1шт.

4

331987A1

LARGE PLATE

PLATE, LARGE

1шт.

5

331988A1

GASKET

1шт.

6

330808A1

CAPSCREW,Flg, 5/16" - 18 x 5", Gr 8

37шт.

7

404223A1

STUD

M8 x 25

14шт.

8

330816A1

NUT

M8

14шт.

9

330927A1

SCREW

23шт.

10

332310A1

SWITCH

1шт.

11

330928A1

PLUG

Incl. Ref 12

1шт.

12

330929A1

O-RING,2mm Thk x 13mm ID

1шт.

13

331990A1

COMPRESSION SPRING

1шт.

14

331989A1

JACK PISTON

1шт.
