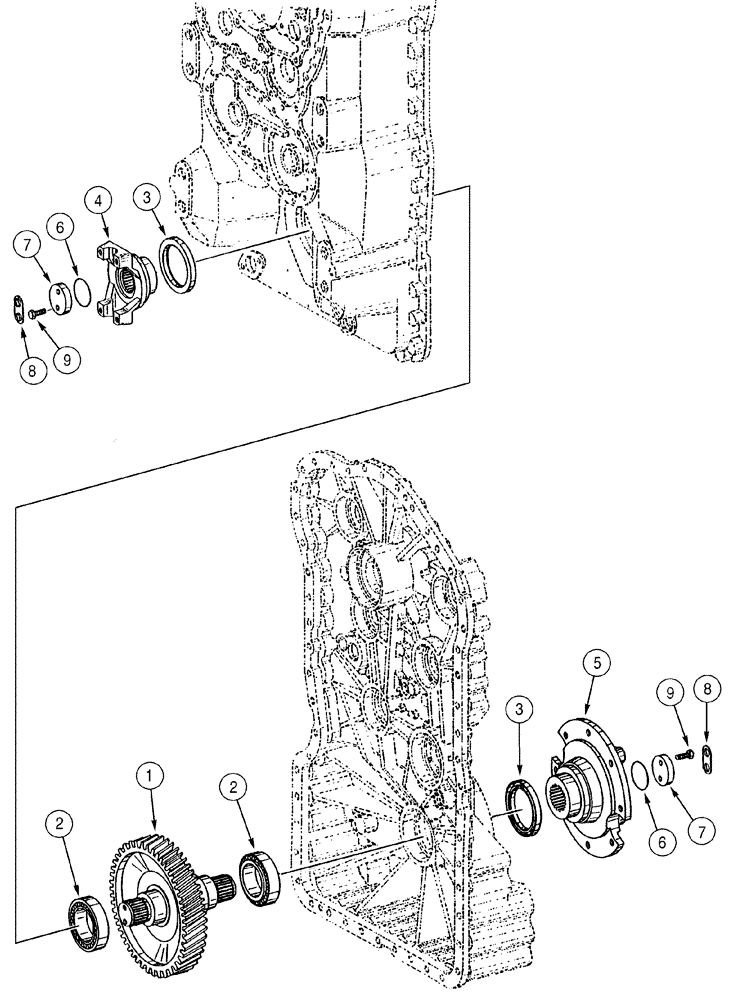

Запчасти Case 521D (06-14) - TRANSMISSION - SHAFT, OUTPUT (06) - POWER TRAIN

361424A1

TRANSMISSION

ZF No. 4656 024 017; See Figures 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

330855A1

SHAFT

1шт.

2

330796A1

BEARING, ROLLER

2шт.

3

103607A1

SEAL

2шт.

4

404326A1

YOKE

Flange, Output, Rear

1шт.

5

404332A1

YOKE

Flange, Output; For Parking Brake Assembly, See Figure 07-01

1шт.

6

S301574

O-RING,4mm Thk x 38mm ID

2шт.

7

S301575

STOP

Retainer

2шт.

8

S301576

LARGE PLATE

PLATE, LARGE

2шт.

9

330856A1

CAPSCREW,Hex, M8 x 25mm

M8 x 25

4шт.
