Запчасти Case 921C (06-20) - AXLE, FRONT AND REAR - DIFFERENTIAL (06) - POWER TRAIN

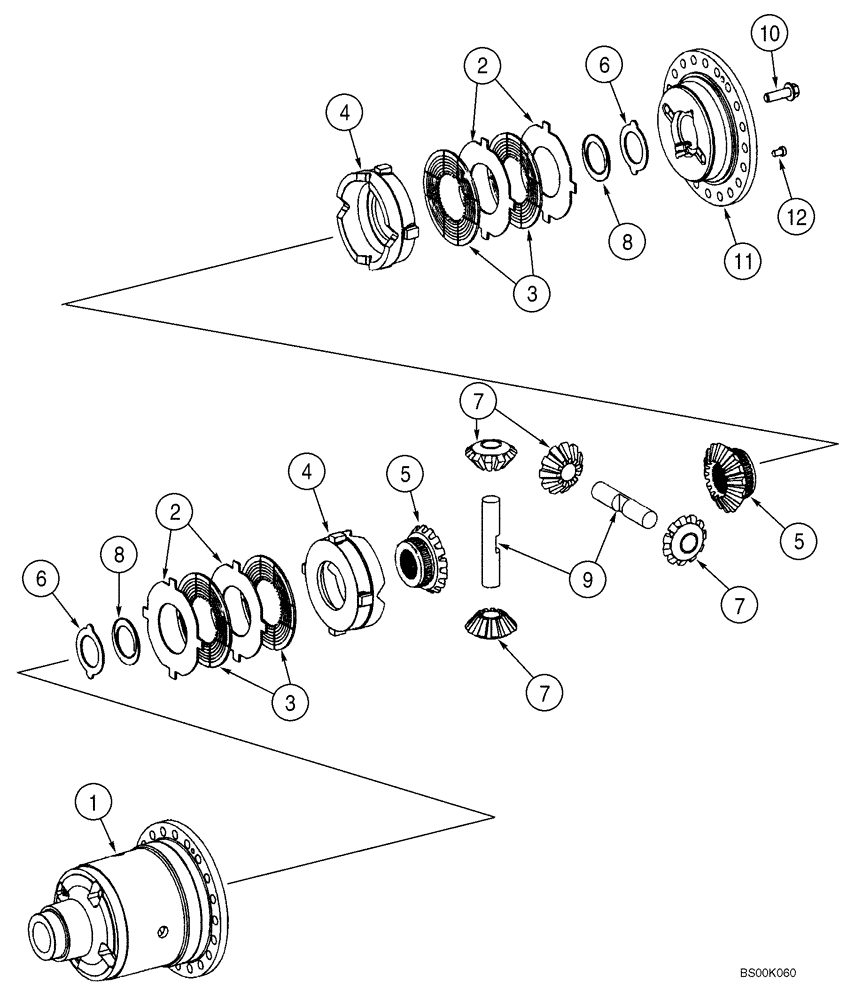

Схема запчастей Case 921C - (06-20) - AXLE, FRONT AND REAR - DIFFERENTIAL (06) - POWER TRAIN
5
6
9
7
3
2
8
1
11
10
8
12
7
4
6
3
2
7
5
4

Артикул

Название

Примечание

Количество

298445A2

FRONT AXLE

Incl. Figure 06-18 - 06-21, 07-01

1шт.

1

87313936

FRONT AXLE

ZF No 4474 054 025; See Figure 06-18 - 06-21

1шт.

1

87358597

FRONT AXLE

ZF No 4474 054 047; See Figure 06-18 - 06-21; Same As 87313936 Except Wheel End/A And Brake Disc

1шт.

298446A2

REAR AXLE

Incl. Figure 06-20, 06-22 - 06-24, 07-01

1шт.

87313937

REAR AXLE

ZF No 4474 054 026; Same As 298446A2 Except Oil Filled

1шт.

Incl. Figure 06-20, 06-22 - 06-24, 07-01

1шт.

87358599

REAR AXLE

ZF No 4474 054 048; New Brake Discs

1шт.

384506A1

AXLE DIFFERENTIAL

1шт.

Limited Slip

1шт.

Incl. 1-12

1шт.

1

384507A1

AXLE DIFFERENTIAL

1шт.

2

242154A1

CLUTCH DISC

CLUTCH DISK 3,0 mm

4шт.

Outer

1шт.

2

242155A1

CLUTCH DISC

CLUTCH DISK 2,9 mm

4шт.

Outer

1шт.

2

242156A1

CLUTCH DISC

CLUTCH DISK 3,1 mm

4шт.

Outer

1шт.

2

242157A1

CLUTCH PLATE

CLUTCH DISK 2,7 mm

4шт.

Outer

1шт.

2

242158A1

CLUTCH PLATE

CLUTCH DISK 3,3 mm

4шт.

Outer

1шт.

3

242159A1

CLUTCH PLATE

CLUTCH DISK

4шт.

Inner

1шт.

4

243354A1

THRUST RING

2шт.

5

384508A1

GEAR

16 T

2шт.

Side

1шт.

6

120017A1

THRUST WASHER

2шт.

Outer

1шт.

7

120018A1

PINION

4шт.

Pinion

1шт.

8

120019A1

THRUST WASHER

2шт.

Inner

1шт.

9

120020A1

PIN

2шт.

Pinion

1шт.

10

184716A1

SCREW

20шт.

11

384509A1

COVER

1шт.

12

193152A1

BOLT

2шт.

Выбрано товаров: 37
