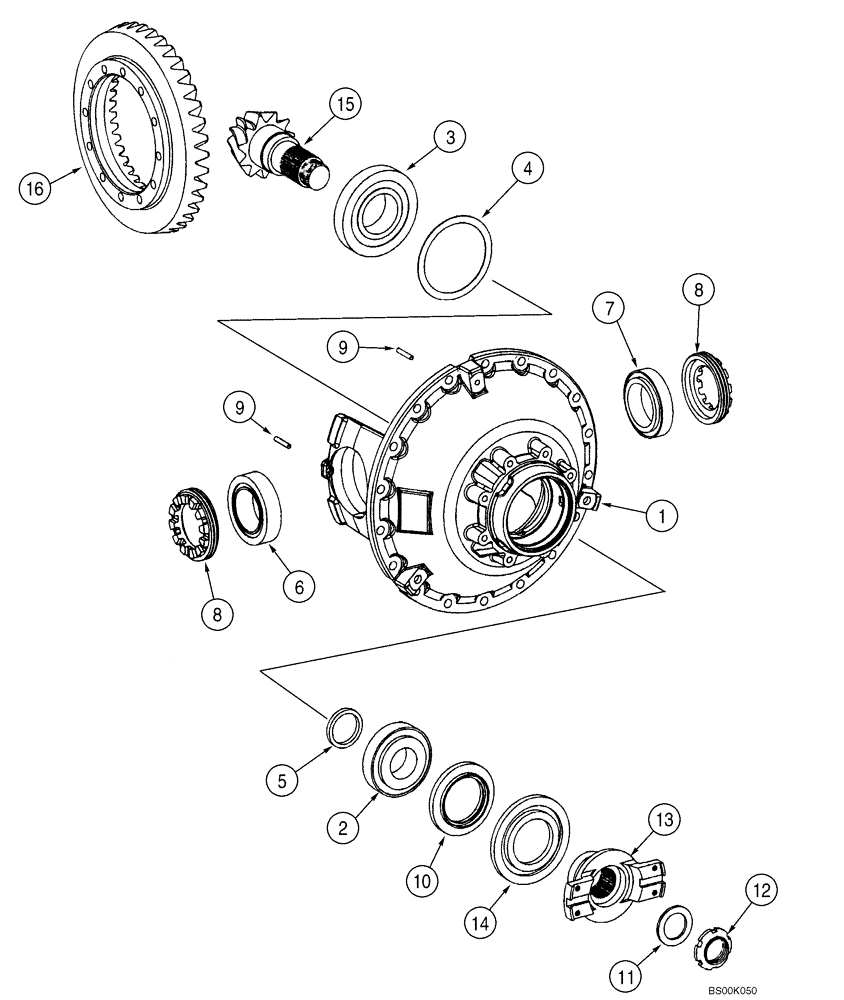

Запчасти Case 921C (06-19) - AXLE, FRONT - DIFFERENTIAL CARRIER (06) - POWER TRAIN

*

298445A2

FRONT AXLE

See Figure 06-18 - 06-21

1шт.

1

87313936

FRONT AXLE

ZF No 4474 054 025; See Figure 06-18 - 06-21

1шт.

1

87358597

FRONT AXLE

ZF No 4474 054 047; See Figure 06-18 - 06-21; Same As 87313936 Except Wheel End/A And Brake Disc

1шт.

*

384481A1

AXLE DIFFERENTIAL

Incl. 1 - 16; Incl. Limited Slip Differential; See Figure 06-20

1шт.

*

384481A1R

REMAN-AXLE DIF w/LTD

REMAN-AXLE DIFF, w/LTD SLIP REMANUFACTURED FRONT AXLE DIFFERENTIAL

1шт.

*

384481A1C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

*

8605610

REMAN-AXLE DIFFERENT

REMANUFACTURED AXLE 921C FRONT DIFFERENTIAL ASSY. - NA Only

1шт.

*

8605611

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, AXLE 921C FRONT DIFFERENTIAL ASSY. - NA Only

1шт.

1

384482A1

HOUSING

1шт.

2

384483A1

TAPERED BEARING,60.33mm ID x 136.53mm OD x 36.51mm W

1шт.

3

384484A1

BEARING, ROLLER

1шт.

4

384492A1

WASHER

0,7 mm

1шт.

4

384493A1

WASHER

1,1 mm

1шт.

4

384494A1

WASHER

0,85 mm

1шт.

4

384495A1

WASHER

0,95 mm

1шт.

4

384496A1

WASHER

1,05 mm

1шт.

4

384497A1

WASHER

1,15 mm

1шт.

4

384498A1

WASHER

1,25 mm

1шт.

5

119962A1

RING

7,3 mm

1шт.

5

119963A1

SPACER

7,4 mm

1шт.

5

119964A1

SPACER

7,5 mm

1шт.

5

119965A1

SPACER

7,6 mm

1шт.

5

119966A1

SPACER

7,7 mm

1шт.

5

119967A1

SPACER

7,9 mm

1шт.

5

119968A1

SPACER

8,0 mm

1шт.

5

119969A1

SNAP RING

8,1 mm

1шт.

5

119970A1

SPACER

8,2 mm

1шт.

5

119971A1

RING, SNAP

RING SNAP 8,3 mm

1шт.

5

119972A1

SPACER

8,4 mm

1шт.

5

119973A1

SPACER

8,5 mm

1шт.

5

119974A1

SPACER

8,6 mm

1шт.

5

119975A1

SPACER

8,7 mm

1шт.

5

119976A1

SPACER

8,8 mm

1шт.

5

119977A1

SHIM

8,9 mm

1шт.

5

119978A1

SPACER

9,0 mm

1шт.

5

384436A1

SPACER,7.8mm Thk

7,8 mm

1шт.

5

384438A1

SPACER,7.82mm Thk

7,82 mm

1шт.

5

384439A1

SPACER,7.84mm Thk

7,84 mm

1шт.

5

384440A1

SPACER,7.86mm Thk

7,86mm

1шт.

5

384441A1

SPACER,7.88mm Thk

7,88 mm

1шт.

5

384443A1

SPACER,7.92mm Thk

7,92 mm

1шт.

5

384444A1

SPACER,7.94mm Thk

7,94 mm

1шт.

5

384446A1

SPACER,7.96mm Thk

7,96 mm

1шт.

5

384447A1

SPACER,7.98mm Thk

7,98 mm

1шт.

5

384448A1

SPACER,8.02mm Thk

8,02 mm

1шт.

5

384449A1

SPACER,8.04mm Thk

8,04 mm

1шт.

5

384450A1

SPACER,8.06mm Thk

8,06 mm

1шт.

5

384451A1

SPACER,8.08mm Thk

8,08 mm

1шт.

5

384452A1

SPACER,8.12mm Thk

8,12 mm

1шт.

5

384454A1

SPACER,8.14mm Thk

8,14 mm

1шт.

5

384455A1

SPACER,8.16mm Thk

8,16mm

1шт.

5

384457A1

SPACER,8.18mm Thk

8,18 mm

1шт.

6

384502A1

TAPERED BEARING

1шт.

7

384503A1

TAPERED BEARING,85mm ID x 130mm OD x 30mm W

1шт.

8

A48725

NUT

2шт.

9

838-5845

LOCK PIN,M8 x 45, Slotted

2шт.

10

373828A1

SEAL,90mm ID x 140mm OD x 12mm Thk

1шт.

11

119981A1

THRUST WASHER,51mm ID x 76.5mm OD x 5mm Thk

1шт.

12

119984A1

SLOTTED NUT

1шт.

13

384504A1

FLANGE

1шт.

*

Input

1шт.

14

373830A1

DUST CAP

1шт.

*

384505A1

GEAR

Incl. 15, 16; Front And Rear Axle

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft

1шт.

16

NSS

NOT SOLD SEPARAT

Gear

1шт.
