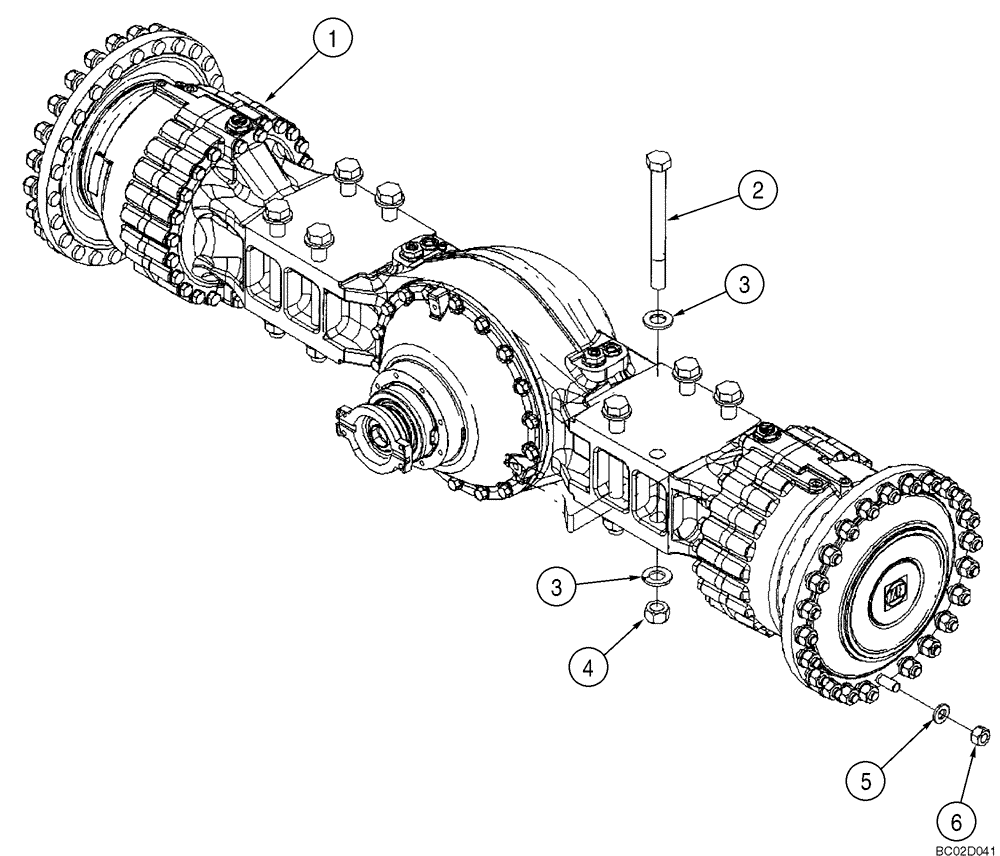

Запчасти Case 921C (06-18) - AXLE, FRONT - MOUNTING (06) - POWER TRAIN

1

298445A2

FRONT AXLE

ZF No 4474 054 011; See Figure 06-18 - 06-21

1шт.

1

87313936

FRONT AXLE

ZF No 4474 054 025; See Figure 06-18 - 06-21

1шт.

1

87358597

FRONT AXLE

ZF No 4474 054 047; See Figure 06-18 - 06-21; Same As 87313936 Except Wheel End/A And Brake Disc

1шт.

8603201

BREATHER

Not Illustrated

1шт.

2

328-20200

BOLT,Hex, 1-1/4" - 12 x 12-1/2", Gr 8

8шт.

3

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

1-3/8 x 2-1/2 x 1/4

16шт.

4

429-1120

NUT,1 1/4"-12, G8

1-1/4 NF; 8

8шт.

5

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

96шт.

6

429-1714

NUT,7/8"-14, G8, Hvy

96шт.
