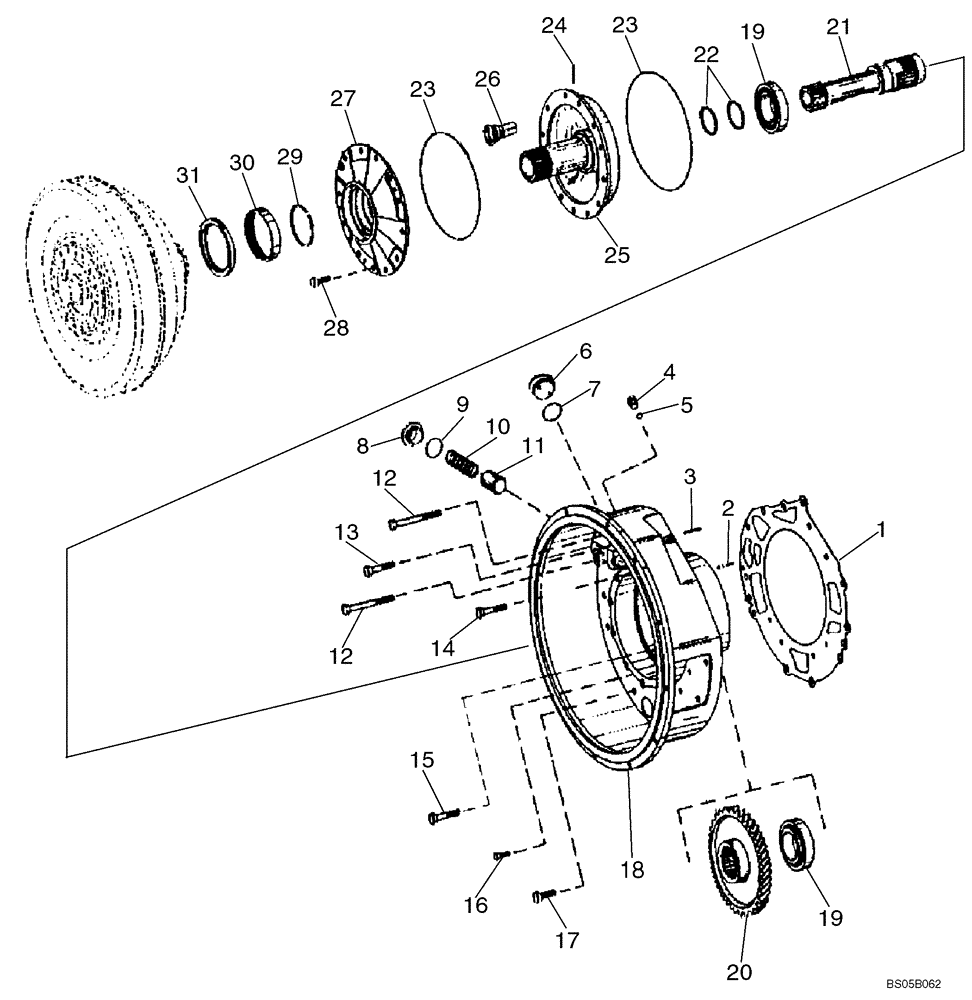

Запчасти Case 921C (06-13A) - TRANSMISSION - INPUT SHAFT (06) - POWER TRAIN

86992950

TRANSMISSION

1шт.

See Figure 06-01 - 06-17, 07-01

1шт.

8605672

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, PIN JEE0155001 & After, Model Number 4WG260, Stock Number 4646 054 068

1шт.

8605671

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

S301836

GASKET

1шт.

2

8605380

PLUG

Plug

3шт.

3

100105A1

PIN

1шт.

4

100113A1

PLUG

M10 x 1

1шт.

Incl. 5

1шт.

5

8603215

O-RING,8mm ID x 1.5mm Width

1шт.

6

100087A1

PLUG

2шт.

Incl. 7

1шт.

7

8603207

O-RING,2.5mm Thk x 38mm ID

38 x 2,5

2шт.

8

E135077

PLUG,Hex, M36 x 1.5

1шт.

Incl. 9

1шт.

9

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

1шт.

10

100103A1

SPRING

1шт.

11

100101A1

PISTON

1шт.

12

185526A1

SCREW

M12 x 55

2шт.

13

826-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

M12 x 70

1шт.

14

100098A1

BOLT

M12 x 60

1шт.

15

100097A1

BOLT

M12 x 95

2шт.

16

100099A1

BOLT

M8 x 30

4шт.

17

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

10шт.

18

8605379

HOUSING

Converter Bell

1шт.

19

8605378

TAPERED BEARING

Roller Bearing

2шт.

20

427028A1

GEAR

Helical Gear

1шт.

21

8605377

SHAFT

Shaft

1шт.

22

S301831

PISTON RING

55 x 2,5

1шт.

23

8605382

O-RING,224mm ID x 3mm Width

O-ring

2шт.

24

932470R1

LOCK PIN,M6 x 20, Slotted

1шт.

25

8605381

FLANGE

Oli Feed Flange

1шт.

26

8605384

VALVE PRESSURE RELIE

Valve

1шт.

27

8605383

BEARING COVER

Bearing Cover

1шт.

28

100096A1

SCREW

M10 x 35

12шт.

29

100100A1

CIRCLIP

1шт.

30

S301867

NEEDLE BEARING,Needle, 90mm ID x 100mm OD x 16mm W

1шт.

31

S301868

SEAL

SEALRING

1шт.
