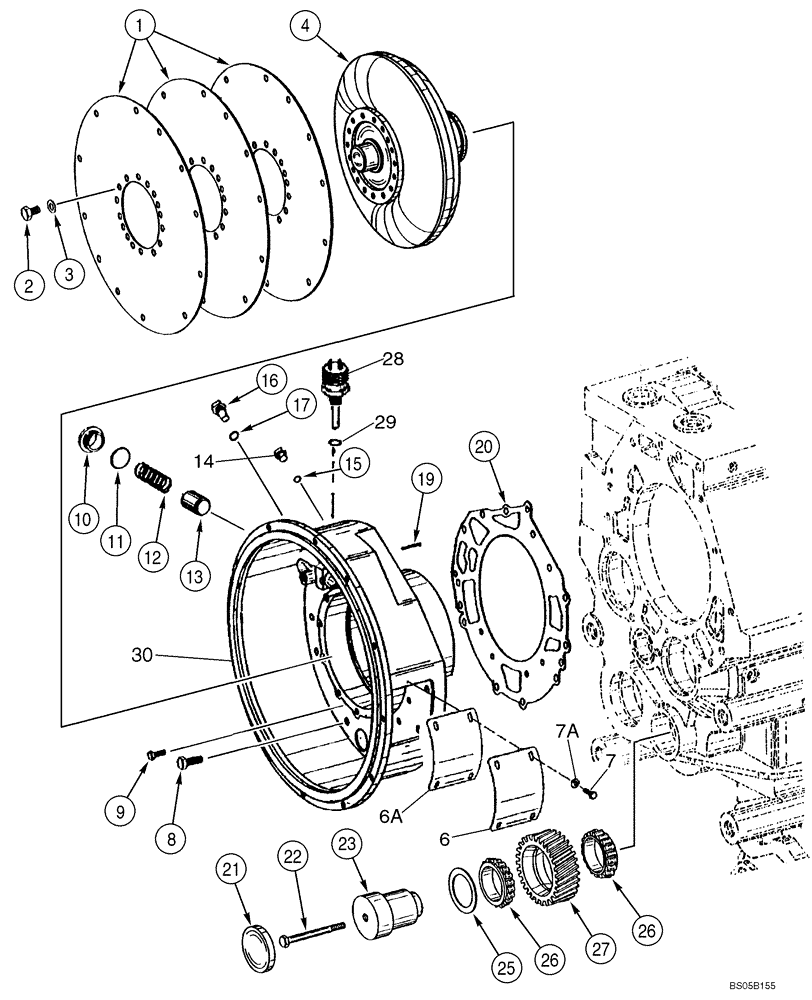

Запчасти Case 921C (06-04) - TRANSMISSION - CONVERTER (06) - POWER TRAIN

86992950

TRANSMISSION

See Figure 06-01 - 06-17, 07-01

1шт.

8605672

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, PIN JEE0155001 & After, Model Number 4WG260, Stock Number 4646 054 068

1шт.

8605671

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

S301901

LARGE PLATE

PLATE, LARGE

3шт.

2

111981A1

BOLT

M10 x 18

16шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

4

8605376

TORQUE CONVERTER

Converter

1шт.

4

8605376R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

4

8605376C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

5

8605379

HOUSING

Converter Bell

1шт.

6

8605470

PLATE

Cover Plate

1шт.

6a

8605471

PLATE

Cover Plate

1шт.

7

613-6018

BOLT,Hex, M6 x 1 x 18mm, Cl 8.8, Full Thd

4шт.

7a

8605472

WASHER

Washer

4шт.

8

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

10шт.

9

100099A1

BOLT

M8 x 30

4шт.

10

E135077

PLUG,Hex, M36 x 1.5

1шт.

11

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

1шт.

12

100103A1

SPRING

1шт.

13

100101A1

PISTON

1шт.

14

100113A1

PLUG

1шт.

15

8603215

O-RING,8mm ID x 1.5mm Width

1шт.

16

100087A1

PLUG

1шт.

17

8603207

O-RING,2.5mm Thk x 38mm ID

1шт.

19

100105A1

PIN

1шт.

20

S301836

GASKET

1шт.

21

100130A1

COVER

1шт.

22

100127A1

BOLT

M10 x 120

1шт.

23

387145A1

AXLE

1шт.

25

387137A1

RING

1шт.

26

387128A1

BEARING, ROLLER

2шт.

27

8900134429

GEAR

Replaces 87400953

1шт.

28

8603622

SENSOR

Temperature

1шт.

29

8603402

O-RING

1шт.

30

8605379

HOUSING

Bell

1шт.
