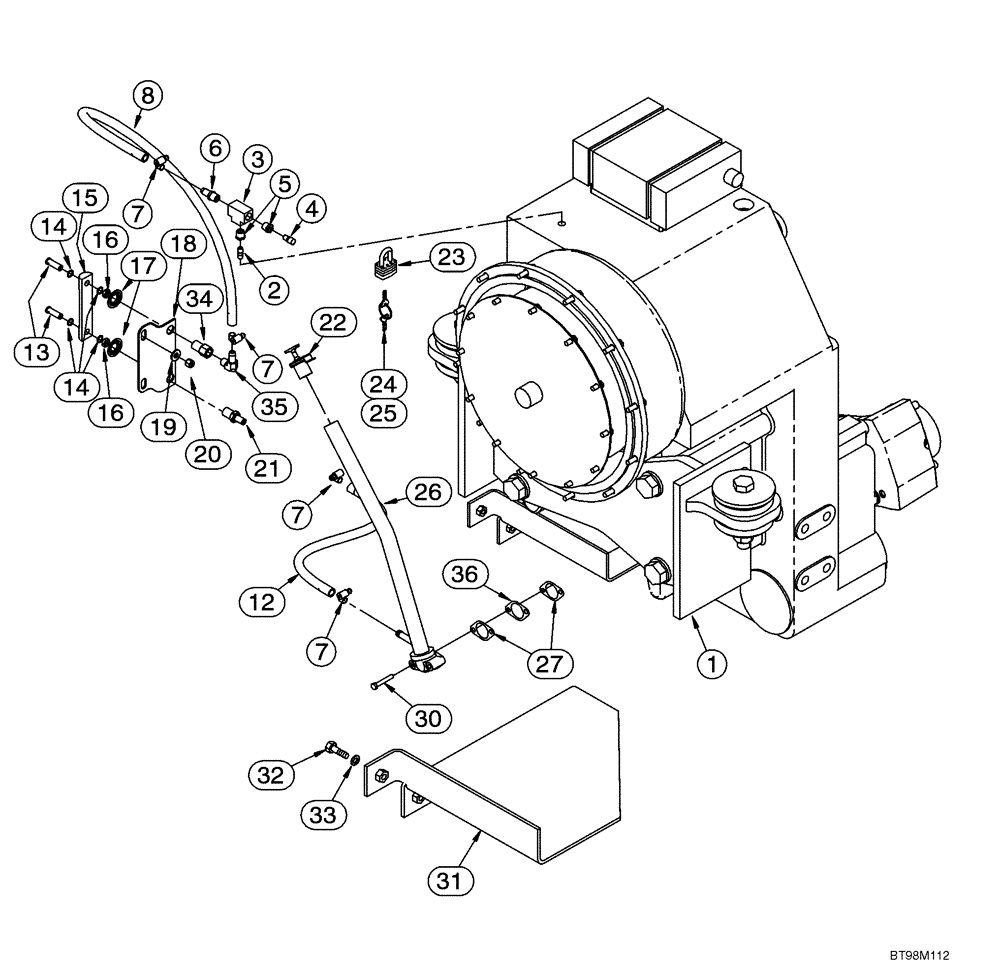

Запчасти Case 921C (06-03) - TRANSMISSION FILL TUBE - GAUGE, SIGHT (Apr 7 2011 3:17PM) (06) - POWER TRAIN

1

86992950

TRANSMISSION

1шт.

See Figure 06-01 - 06-17, 07-01

1шт.

1

8605672

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, PIN JEE0155001 & After, Model Number 4WG260, Stock Number 4646 054 068

1шт.

1

8605671

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

2

221-103

FITTING

1/8 PT x 1

1шт.

3

221-423

TEE,3/8" NPT

1шт.

4

N14704

BREATHER

1шт.

Incl. With Transmission

1шт.

5

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

2шт.

6

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

7

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

8

L128676

RADIATOR HOSE,12.70 mm ID x 1150.00, SAE 30R2 Type I

1шт.

12

L71252

HOSE,12.7 mm ID x 508.00 mm, SAE 30R2 Type I

508 mm (20 in)

1шт.

86988366

SIGHTGLASS

2шт.

Transmission

1шт.

Incl. 13 - 16

1шт.

Component Parts Not Serviced Separately

1шт.

13

N13213

BOLT

2шт.

14

NSS

NOT SOLD SEPARAT

O-ring

4шт.

15

NSS

NOT SOLD SEPARAT

Gauge

1шт.

16

NSS

NOT SOLD SEPARAT

Nut

2шт.

17

131-141

PUSH-ON NUT,.74", Push-on

2шт.

18

L129629

SUPPORT

1шт.

Mounting, Sight Gauge

1шт.

19

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

20

231-1446

NUT,3/8" - 16, Gr 5

2шт.

21

L125836

FITTING

1шт.

Lower

1шт.

22

349446A1

CAP ASSY.

1шт.

Fill Tube

1шт.

If Used

1шт.

23

D93753

PADLOCK

1шт.

Incl. 24, 25

1шт.

If Used

1шт.

24

D93751

SET OF 2 KEYS

2шт.

Yale Lock

1шт.

If Used

1шт.

25

R29555

KEY

2шт.

Master Lock

1шт.

If Used

1шт.

26

235052A1

TUBE,31.75 mm OD

1шт.

Fill, Transmission

1шт.

27

S300507

GASKET

Fill Tube

2шт.

27

8603281

GASKET

Replaces S300507

2шт.

30

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

31

256404A1

PROTECTOR

1шт.

Transmission Fill Tube

1шт.

North America Only

1шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

North America Only

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

3шт.

North America Only

1шт.

34

L129630

ADAPTER

1шт.

Upper

1шт.

35

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

36

E135229

FILTER SCREEN

1шт.

Fill Tube

1шт.
