Запчасти Case 921C (06-02) - MOUNTING - TRANSMISSION (Sep 29 2010 12:21PM) (06) - POWER TRAIN

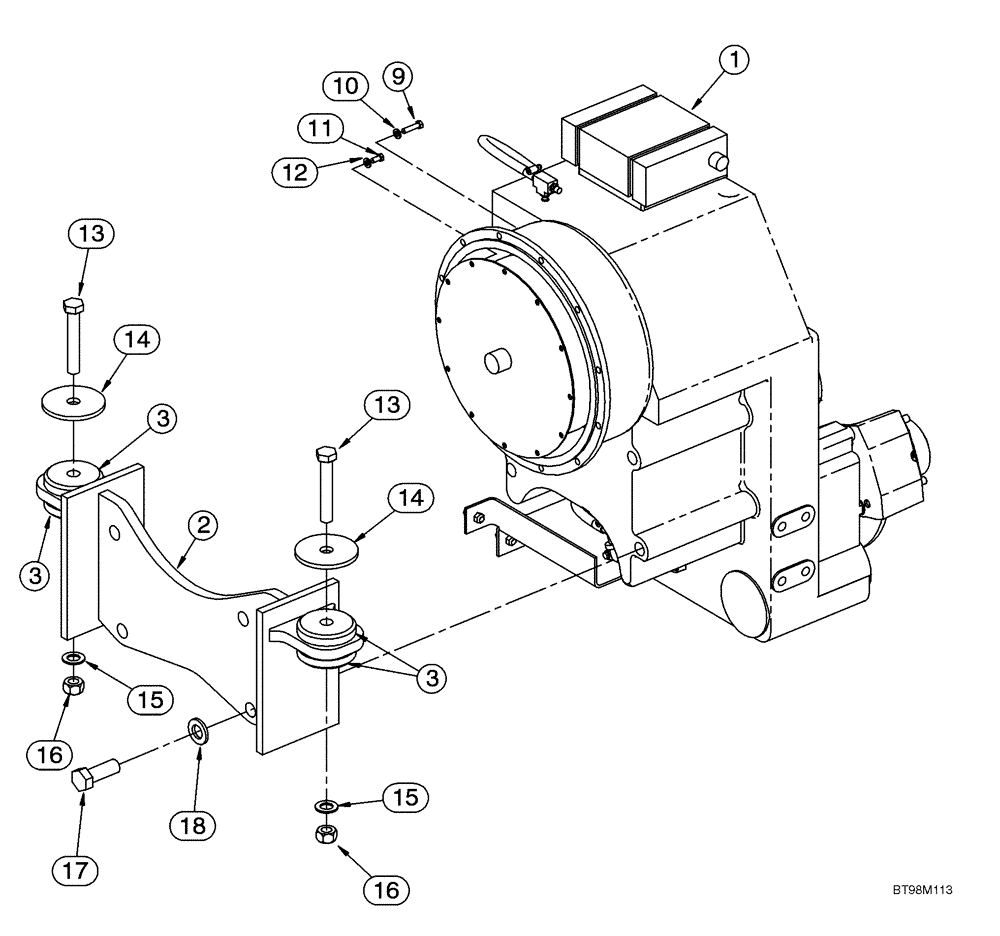

Схема запчастей Case 921C - (06-02) - MOUNTING - TRANSMISSION (Sep 29 2010 12:21PM) (06) - POWER TRAIN
12
15
16
2
18
13
3
1
3
9
16
14
14
3
17
13
10
11
15

Артикул

Название

Примечание

Количество

1

86992950

TRANSMISSION

1шт.

See Figure 06-01 - 06-17, 07-01

1шт.

1

8605672

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, PIN JEE0155001 & After, Model Number 4WG260, Stock Number 4646 054 068

1шт.

1

8605671

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

2

228838A1

GRILLE ASSY

1шт.

Transmission Mounting

1шт.

3

114359A1

MOUNT

2шт.

Transmission

1шт.

Two Piece

1шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

12шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

12шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

13

326-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

2шт.

14

L129147

WASHER

2шт.

Transmission Mounting

1шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

2шт.

16

429-1016

NUT,1"-8, G8

2шт.

17

828-30080

BOLT,Hex, M30 x 3.5 x 80mm, Class 10.9

M30 x 80; 10.9

4шт.

18

396-31119

WASHER,1 1/4" x 2 1/4" x 1/4", HDN

1-1/4 x 2-1/4 x 1/4

4шт.

Выбрано товаров: 20
