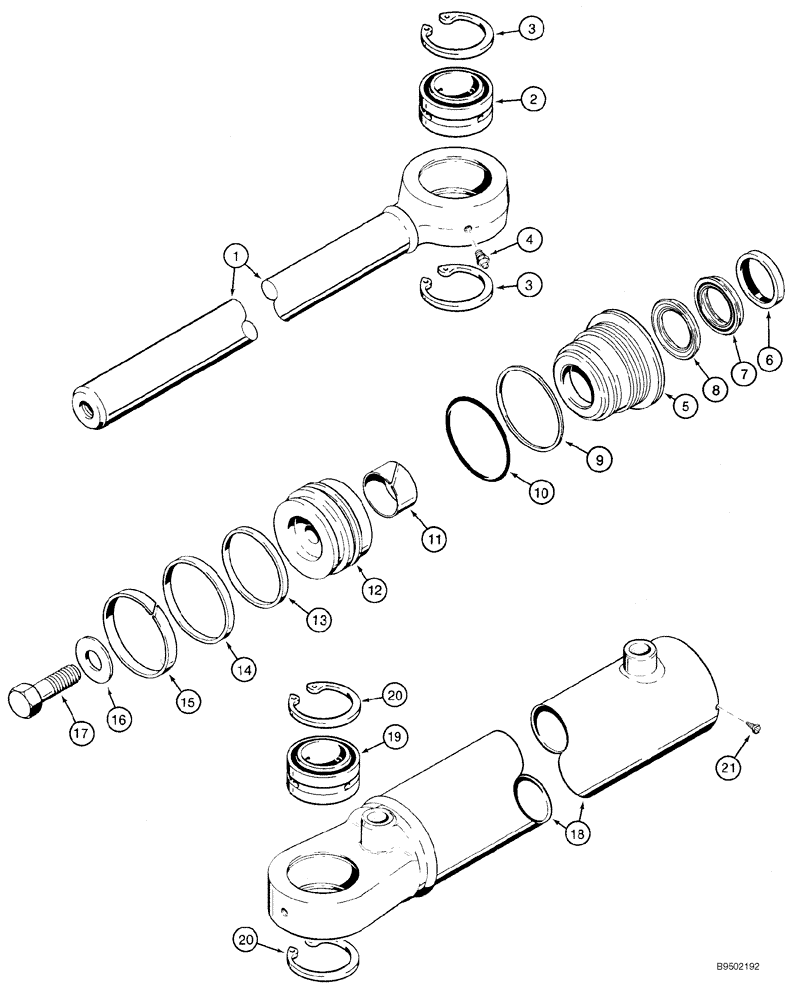

Запчасти Case 921C (05-07) - CYLINDER ASSY - STEERING (Jun 4 2010 9:02AM) (05) - STEERING

1346169C4

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 516.6mm Stroke

102 ID x 517 mm strk

2шт.

Incl. 1-21

1шт.

1

1346168C3

PISTON ROD

51 mm

1шт.

Incl. 2, 3

1шт.

2

1346233C1

SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 76.2mm W

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

NSS

NOT SOLD SEPARAT

Gland

1шт.

Cylinder

1шт.

Incl. 5-11

1шт.

5

1346269C1

CYLINDER END CAP

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

1542876C1

SEAL KIT,50.8mm Rod

1шт.

Incl. 7, 8

1шт.

Not Serviced Separately

1шт.

Order 1543269C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

Not Serviced Separately

1шт.

Order 1543269C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

Not Serviced Separately

1шт.

Order 1543269C1 Seal Kit

1шт.

9

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

10

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8

1шт.

11

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

12

1346216C1

PISTON

1шт.

13

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

15

G100448

RING,101.6mm OD, Ext

1шт.

16

G32351

WASHER

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

1шт.

18

1346166C3

HYD CYL SLEEVE

1шт.

Incl. 19, 20

1шт.

19

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

1шт.

20

100-21315

SNAP RING,3.156", Int, #315

2шт.

21

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1543269C1

SEAL KIT

1шт.

Incl. 1542876C1, 6, 9-11, 13-15

1шт.
