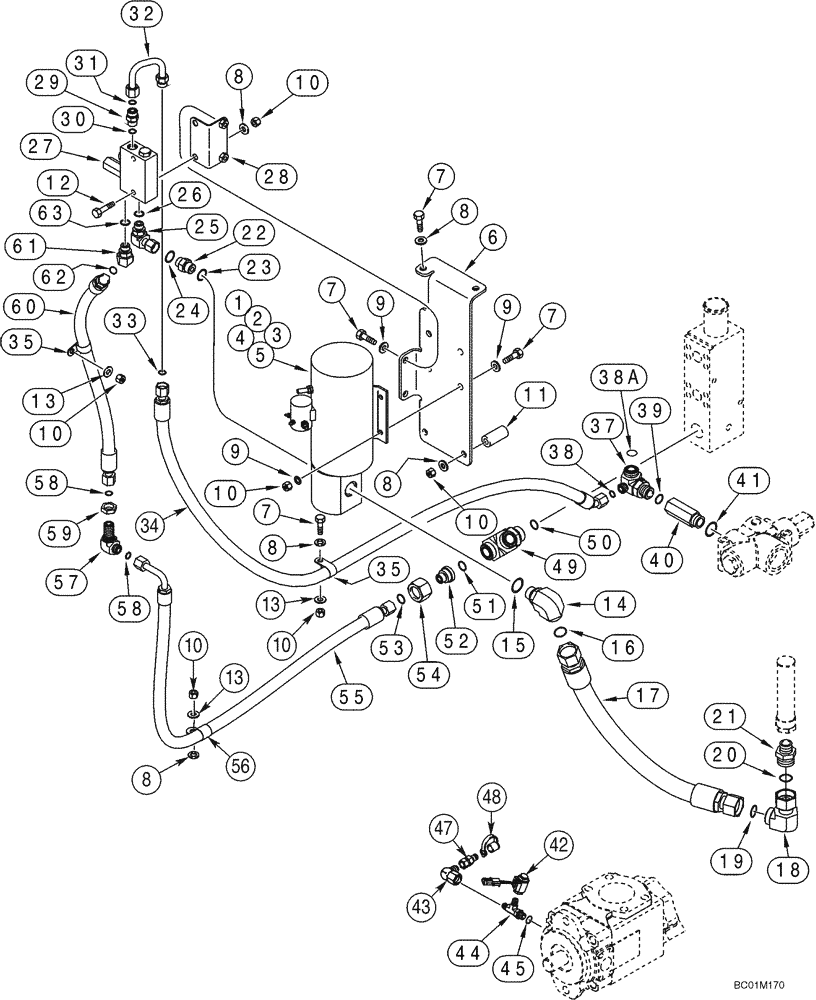

Запчасти Case 921C (05-06) - HYDRAULICS - STEERING, AUXILIARY (Jun 22 2011 2:48PM) (05) - STEERING

197540A1

PUMP, HYDRAULIC

1шт.

Motor

1шт.

Auxiliary Steering

1шт.

Incl. 1 - 5

1шт.

1

258042A1

MOTOR, ELECTRIC

1шт.

Drive

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

3

258043A1

SOLENOID SWITCH

24V

1шт.

4

258044A1

GASKET

1шт.

5

258045A1

SEAL KIT

1шт.

Component Parts Not Serviced Separately

1шт.

Incl. (1) Retaining Ring, (1) Shaft Seal, (2) O-Rings, (2) E-Seals and (2) Backup Rings

1шт.

Not Illustrated

1шт.

5a

S64612

BOOT

2шт.

Not Illustrated

1шт.

6

324557A1

LARGE PLATE

PLATE, LARGE

1шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

11

324441A1

SPACER,12.7mm ID x 25.4mm OD x 54mm L

2шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

14

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

1-7/16 fc x 1-1/16

1шт.

Incl. 15, 16

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Boss End

1шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

17

324192A1

HOSE ASSY.

584 mm (23 in)

1шт.

18

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1-7/16 fc x sw

1шт.

Incl. 19

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

21

127811A1

FITTING

1шт.

Incl. 20

1шт.

22

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

Incl. 23, 24

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Boss End

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

25

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

13/16 sw x 3/4 Or

1шт.

Incl. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

311652A2

VALVE

1шт.

Component Parts Not Serviced Separately

1шт.

28

324558A1

LARGE PLATE

PLATE, LARGE

1шт.

29

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

Incl. 30, 31

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Boss End

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

32

326366A1

TUBE,12.7 mm OD, 70, 70 mm Length

1шт.

Pressure

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

324478A1

HOSE ASSY.

1562 mm (61-1/2 in)

1шт.

35

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

37

326248A1

TEE,13/16" - 16 ORFS x 1-1/16" - 12 ORB x 1-3/16" - 12 ORFS

1шт.

Incl. 38, 38A, 39

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

40

325814A1

VALVE

1шт.

Incl. 41

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

42

408619A1

COIL

1шт.

See Figure 04-16

1шт.

43

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

44

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

Incl. 45

1шт.

47

101792A1

COUPLING

1шт.

48

H434163

DUST CAP

1шт.

49

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

1шт.

Incl. 50, 51

1шт.

50

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Boss End

1шт.

12

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

51

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

Face Seal End

1шт.

52

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

1-716 sw x 13/16 fc

1шт.

Incl. 53

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

203-905

TUBE NUT,1 7/16"-12 ORFS

1 in

1шт.

55

324531A1

HOSE ASSY.

1158 mm (45-5/8 in)

1шт.

56

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

57

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

13/16 fc x 13/16 blhd fc

1шт.

Incl. 58

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

59

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

60

324284A1

HOSE ASSY.

677 mm (26-11/16 in)

1шт.

60

324284A2

HOSE ASSY.

677 mm (26-11/16 in); Replaces 324284A1; Different Hose Material

1шт.

61

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

Incl. 62, 63

1шт.

62

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

63

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Boss End

1шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
