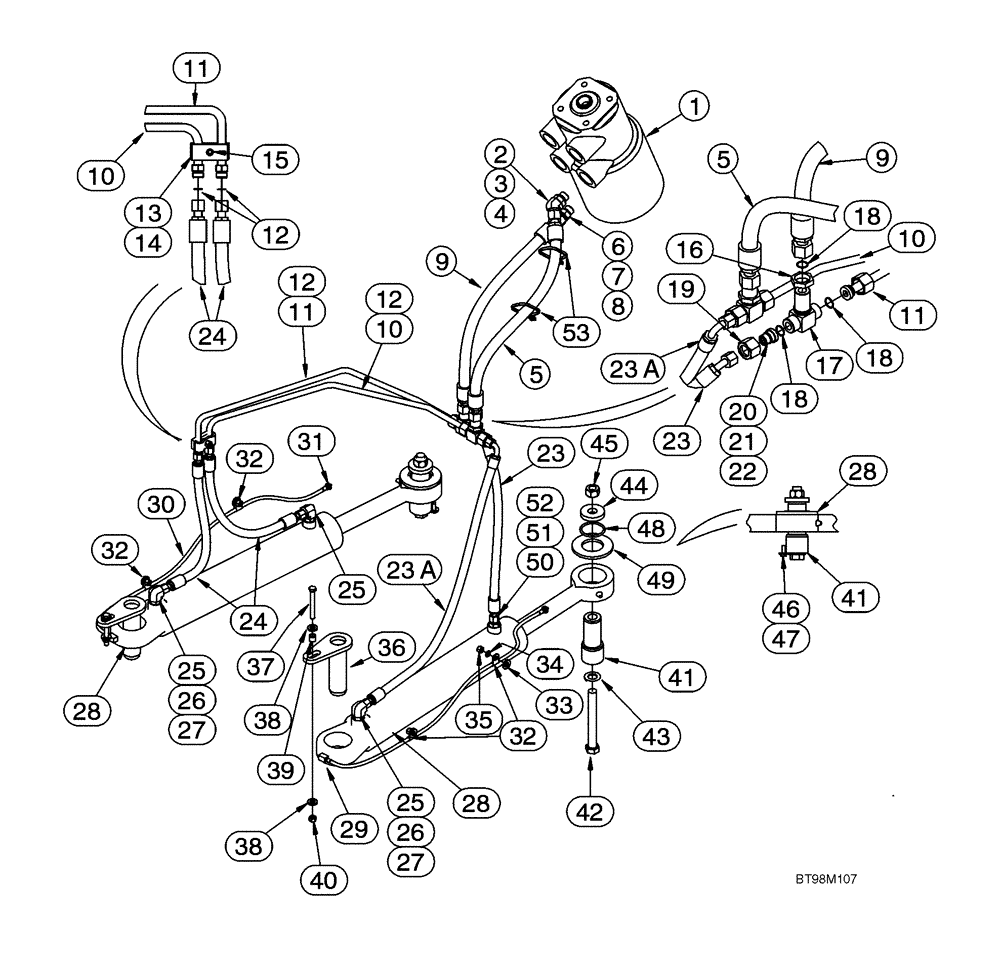

Запчасти Case 921C (05-05) - HYDRAULICS - STEERING (Mar 11 2010 9:50AM) (05) - STEERING

*

STEERING CONTROL VALVE TO CYLINDERS

1шт.

1

279428A2

VALVE

Steering, See Figure 05-02

1шт.

1

87307200

HYDRAULIC VALVE

Replaces 279428A2

1шт.

2

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

Incl 3 - 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

5

231653A1

HOSE ASSY.

751 mm (29-5/8 in)

1шт.

6

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl 7 - 8

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

9

231652A1

HOSE ASSY.

736 mm (29 in)

1шт.

10

L130009

TUBE,15.87 mm OD

LH, Rod End

1шт.

11

L130007

TUBE,15.87 mm OD

LH, Closed End

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

L119350

SPACER

1шт.

14

S45067

CLAMP

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

17

L128344

TEE

2шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

19

203-904

TUBE NUT,1 3/16"-12 ORFS

2шт.

20

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

Incl 21

2шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

231651A1

HOSE ASSY.

581 mm (22-7/8 in), RH, Rod End

1шт.

23a

231650A1

HOSE ASSY.

970 mm (38-3/16 in), RH, Closed End

1шт.

24

L128453

HOSE ASSY.

525 mm (20-3/4 in)

2шт.

25

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 26 - 27

3шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

28

1346169C4

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 516.6mm Stroke

Steering

2шт.

29

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

30

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in), Lubrication Line

2шт.

31

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

32

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

34

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

35

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

36

L129129

PIN,50.76mm OD x 172mm L

Tear Drop Head

2шт.

37

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

M20 x 100; 10.9

2шт.

38

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

39

L128157

SPACER,12.95mm ID x 19.05mm OD x 16mm L

2шт.

40

829-1412

NUT,M12, Cl 10.9

2шт.

41

L130039

PIN,63.53mm OD x 151.4mm L

2шт.

42

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

2шт.

43

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

2шт.

44

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

2шт.

45

829-1424

NUT,M24, Cl 10

2шт.

46

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

47

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

48

108115A1

SEALING RING,62.865mm ID x 5.334mm Width

2шт.

49

102594A1

SPACER

2шт.

50

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 51 - 52

1шт.

51

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

52

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

53

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.
