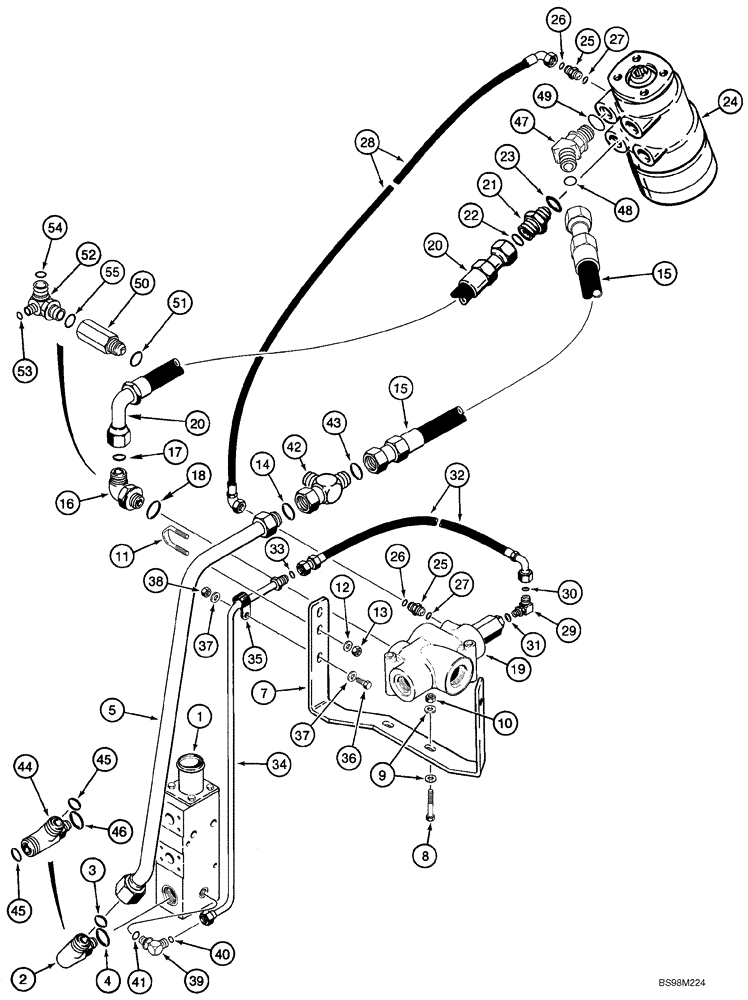

Запчасти Case 921C (05-04) - HYDRAULICS - STEERING (Nov 19 2008 1:58PM) (05) - STEERING

COOOLER BYPASS VALVE TO STEERING CONTROL VALVE

1шт.

1

L127968

VALVE BODY

1шт.

Cooler Bypass Valve

1шт.

See Figure 08-02

1шт.

For Mounting

1шт.

See Figure 08-03

1шт.

2

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 Or

1шт.

Incl. 3, 4

1шт.

Standard Steering

1шт.

If Used

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Boss End

1шт.

5

L128309

TUBE,25.4 mm OD

1шт.

7

226907A2

SUPPORT

1шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

829-1412

NUT,M12, Cl 10.9

1шт.

11

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

1шт.

12

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

231535A1

HOSE ASSY.

625 mm (24-5/8 in)

1шт.

16

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-3/16 fc x 1-1/16 Or

1шт.

Incl. 17, 18

1шт.

Standard Steering

1шт.

If Used

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Boss End

1шт.

19

L128074

VALVE

1шт.

Flow Control

1шт.

See Figure 05-11A

1шт.

20

231534A1

HOSE ASSY.

618 mm (24-3/8 in)

1шт.

21

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

Incl. 22, 23

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Boss End

1шт.

24

279428A2

VALVE

Steering

1шт.

See Figure 05-02

1шт.

24

87307200

HYDRAULIC VALVE

Replaces 279428A2

1шт.

25

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or

2шт.

Incl. 26, 27

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Boss End

1шт.

28

231533A2

HOSE ASSY.

720 mm (28-3/8 in)

1шт.

Load Sensing Port

1шт.

29

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or

1шт.

Incl. 30, 31

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Boss End

1шт.

32

L128454

HOSE ASSY.

400 mm (15-3/4 in)

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

L128363

TUBE,9.52 mm OD x 638, 166 mm L

1шт.

Drain

1шт.

35

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

37

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

39

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

Incl. 40, 41

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Boss End

1шт.

42

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

1шт.

Incl. 43

1шт.

If Used

1шт.

43

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

44

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

1шт.

Incl. 45, 46

1шт.

Auxiliary Steering

1шт.

If Used

1шт.

45

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

Face Seal End

1шт.

46

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Boss End

1шт.

47

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

1-3/16 fc x 1-1/16 Or

1шт.

Incl. 48, 49

1шт.

48

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

49

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Boss End

1шт.

50

325814A1

VALVE

1шт.

Incl. 51

1шт.

Auxiliary Steering

1шт.

If Used

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

52

326248A1

TEE,13/16" - 16 ORFS x 1-1/16" - 12 ORB x 1-3/16" - 12 ORFS

1шт.

Incl. 53 - 55

1шт.

Auxiliary Steering

1шт.

If Used

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

55

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
