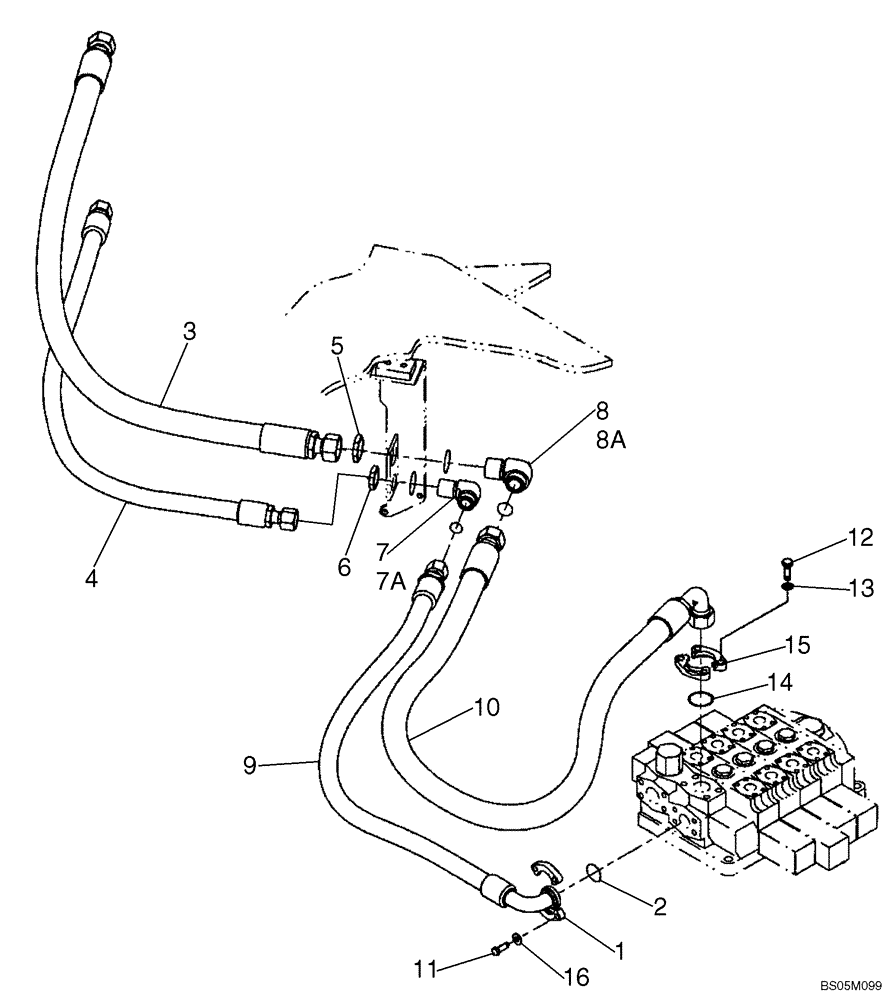

Запчасти Case 921C (05-03B) - HYDRAULICS - STEERING (05) - STEERING

REF

INSTRUCTION

IF USED; ALSO SEE FIGURE 08-04

1шт.

1

A12301

CLAMP,Half

2шт.

2

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

3

L128496

HOSE ASSY.

990 mm (39 in)

1шт.

4

L128495

HOSE ASSY.

990 mm (39 in)

1шт.

5

201-922

BHD LOCK NUT,Blkhd, 1 11/16-12

1-11/16 NF

1шт.

6

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

1-7/16 NF

1шт.

7

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x bkhd fc; Incl. 7A

1шт.

7a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

8

201-364

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

1-11/12 fc sl x bkhd fc; Incl. 8A

1шт.

8a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

9

L129484

HOSE ASSY.

820 mm (32-3/8 in)

1шт.

10

313178A1

HOSE ASSY.

820 mm (32-1/4 in)

1шт.

11

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

7/16 x 1-1/2; 8

4шт.

12

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

14

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

15

A14157

FLANGE

2шт.

16

492-11044

LOCK WASHER,7/16"

4шт.
