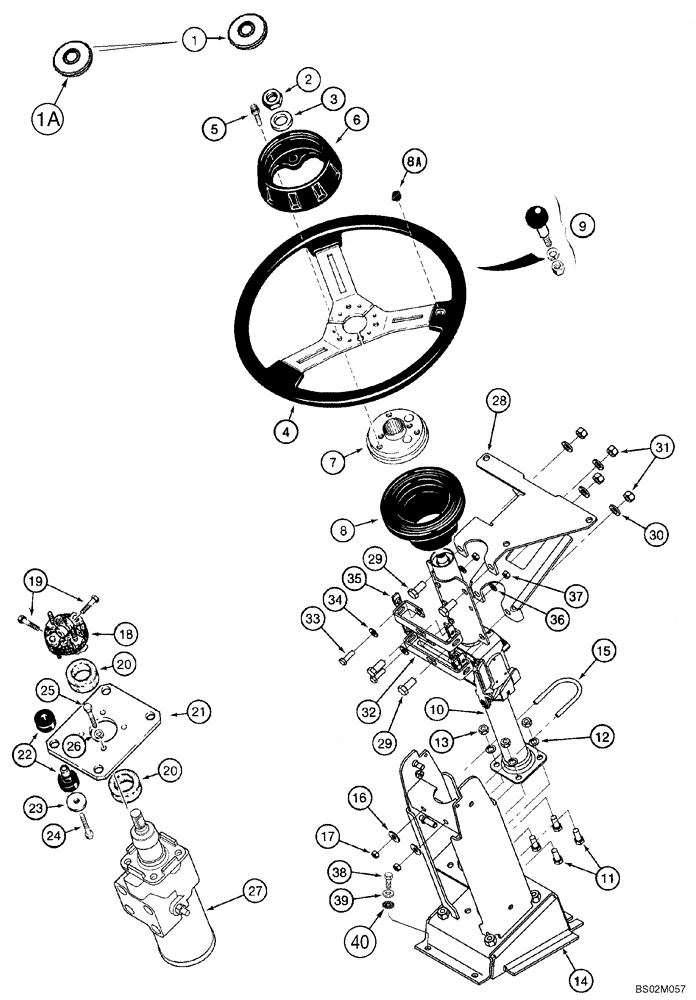

Запчасти Case 921C (05-01) - STEERING WHEEL AND COLUMN (05) - STEERING

1

384985A1

CAP

Incl. 1A

1шт.

1a

1342054C1

PLASTIC PLUG

1шт.

1b

87578198

EMBLEM

CASE; Not Illustrated, If Used

1шт.

2

NSS

NOT SOLD SEPARAT

M14; Nut

1шт.

3

895-11014

WASHER,M14 x 28 x 2.5

1шт.

283484A1

STEERING WHEEL

Incl. 4 - 8A

1шт.

4

D147465

STEERING WHEEL

Not Serviced Separately; Order 283484A1

1шт.

283484A1

STEERING WHEEL

Incl. Spacer Ring, Wheel Hub, Bolts, Washers and Wheel; Not Illustrated; Replaces D148204

1шт.

5

S301434

SCREW

3шт.

6

S301399

CAP

1шт.

7

329105A1

HUB

1шт.

8

S301400

BOOT

1шт.

8a

S301435

PLUG

Remove To Use Spinner Knob

1шт.

9

97400C1

HANDLE

Spinner; Incl. Washer and Nut

1шт.

10

226107A3

STEERING COLUMN

Assy, Tilt, Incl 2

1шт.

10

318942A1

REPAIR KIT

Locking; Tilt

1шт.

10

339490A1

REPAIR KIT

Spring

1шт.

10

339499A1

REPAIR KIT

Lever

1шт.

10

339500A1

REPAIR KIT

Shaft

1шт.

10

NSS

NOT SOLD SEPARAT

Column, Steering; Housing; Shaft

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

251715A4

SUPPORT

1шт.

15

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

L100096

ISOLATOR

1шт.

19

CAS7807271

SCREW

3/8 x 1-1/4

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

2шт.

21

237344A2

PLATE

1шт.

22

A141515

ISOLATOR

4шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

24

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

25

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

REF

INSTRUCTION

Valve, Control; Steering; See Figure 05-02

1шт.

28

251730A4

PLATE

Instrument Cluster

1шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

31

829-1412

NUT,M12, Cl 10.9

4шт.

32

251725A3

BRACKET

2шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

35

833-40306

SPRING NUT,M6, U

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

39

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

40

893-11010

LOCK WASHER,Ext Tooth, M10

4шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
