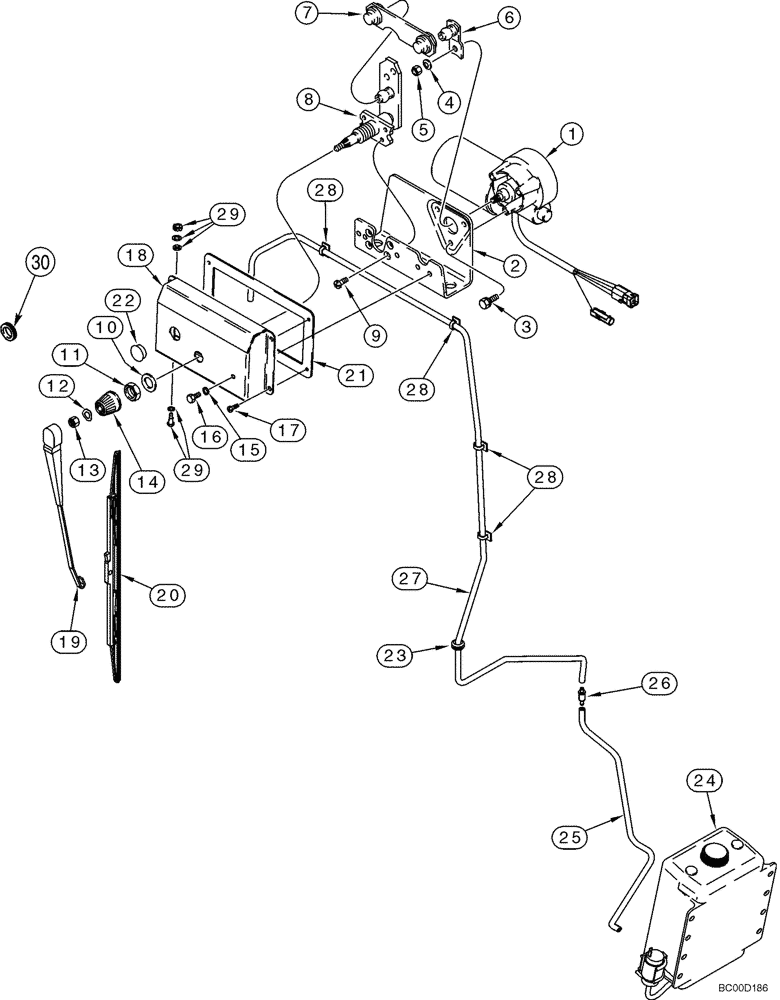

Запчасти Case 921C (04-32) - CAB - WIPER, REAR (04) - ELECTRICAL SYSTEMS

*

413378A1

WIPER MOTOR

MOTOR, WIPER

1шт.

*

Incl. 1 -14

1шт.

1

413823A1

WIPER MOTOR

MOTOR, WIPER 24 volt

1шт.

*

Windshield Wiper Rear

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket

1шт.

3

NSS

NOT SOLD SEPARAT

Screw

3шт.

4

NSS

NOT SOLD SEPARAT

Washer

1шт.

*

Retaining

1шт.

5

NSS

NOT SOLD SEPARAT

Nut

1шт.

6

NSS

NOT SOLD SEPARAT

Arm, Wiper

1шт.

7

413824A1

LINK

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Screw

4шт.

10

L112088

WASHER

1шт.

*

Shaft

1шт.

11

L112087

NUT

1шт.

*

Shaft

1шт.

12

L112089

WASHER

1шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

L112081

CAP

1шт.

15

892-11006

LOCK WASHER,M6

1шт.

16

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

18

324869A2

COVER

Rear Wiper

1шт.

*

Rear Wiper

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM, WIPER Windshield Wiper Rear

1шт.

19

87319296

WIPER ARM

ARM, WIPER Windshield Wiper Rear; Replaces A187712

1шт.

20

132024A1

WIPER BLADE

1шт.

20

87319297

WIPER BLADE,Single, 500mm L

BLADE WIPER; Replaces 132024A1

1шт.

21

1345074C1

GASKET,5mm Thk

1шт.

22

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

23

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

24

236781A1

CONTAINER

Windshield Washer Front and Rear, Incl Pumps and Cap

1шт.

24

87439461

CAP

1шт.

24

48042633

PUMP,24V

2шт.

25

324467A1

HOSE

572 mm (22-5/8 in)

1шт.

*

Reservoir To Check Valve

1шт.

*

Cut From 1968141CX

1шт.

26

324203A1

CHECK VALVE

1шт.

27

324469A1

HOSE

3073 mm (121 in)

1шт.

*

Windshield Washer

1шт.

*

Rear

1шт.

*

Cut From 1968141CX

1шт.

28

L100659

CLIP

4шт.

29

324550A1

JET

1шт.

*

Windshield Washer

1шт.

*

Rear

1шт.

30

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.
