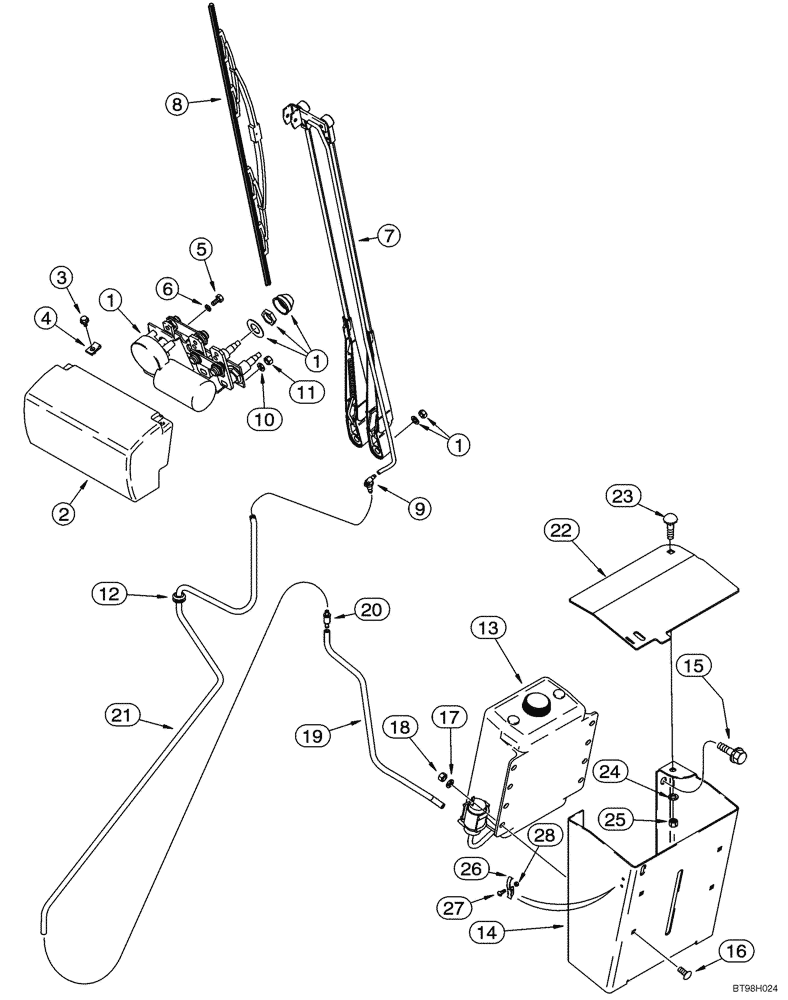

Запчасти Case 921C (04-31) - CAB - WIPER, FRONT (04) - ELECTRICAL SYSTEMS

1

322848A1

WIPER MOTOR

MOTOR, WIPER 24 volt

1шт.

*

Windshield Wiper Front

1шт.

*

For Service Order 87408552, 87408553. To Get linkage Order 322848A1 or 84544472

1шт.

1

322848A1R

REMAN-WIPER MOTOR

Wiper Motor

1шт.

1

322848A1C

CORE-WIPER MOTOR

Return Number, ELECTRONIC CONTROL UNIT

1шт.

1

84544472R

REMAN-WIPER MOTOR

821C, 921C, Both (S/N JEE0155001 & AFTER), Reman for New PN 322848A1

1шт.

1

84544472C

CORE-WIPER MOTOR

Return Number

1шт.

*

87408552

WIPER MOTOR

1шт.

*

87408553

KIT

Wiper Hardware

1шт.

2

399232A1

COVER

1шт.

*

Front Wiper

1шт.

*

Tan

1шт.

3

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

2шт.

4

833-40306

SPRING NUT,M6, U

2шт.

5

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

6

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

7

321736A1

WIPER ARM

ARM, WIPER Dual

1шт.

7

87319294

WIPER ARM

ARM, WIPER Dual; Replaces 321736A1; Includes 'U' Shaped Retaining Clip

1шт.

8

A187574

WIPER BLADE

700 mm (27-9/16 in)

1шт.

8

87319295

WIPER BLADE

Assembly 700mm (27-9/16 in)

1шт.

9

1968053C1

ELBOW

1шт.

10

N8361

SPRING WASHER

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

13

236781A1

CONTAINER

Windshield Washer Front and Rear, Incl Pumps and Cap

1шт.

13

87439461

CAP

1шт.

13

48042633

PUMP,24V

2шт.

14

236782A2

SHIELD

1шт.

*

Reservoir

1шт.

15

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

4шт.

16

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

19

324467A1

HOSE

572 mm (22-5/8 in)

1шт.

20

324203A1

CHECK VALVE

1шт.

*

Reservoir To Check Valve

1шт.

*

Cut From 1968141CX

1шт.

21

324468A1

HOSE

1651 mm (65 in)

1шт.

*

Windshield Washer

1шт.

*

Front

1шт.

22

311040A1

COVER

1шт.

*

Reservoir

1шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

25

231-1446

NUT,3/8" - 16, Gr 5

1шт.

26

60-4640T1

LATCH

1шт.

*

Cover

1шт.

27

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

28

225-14108

NUT,#8-32

2шт.
