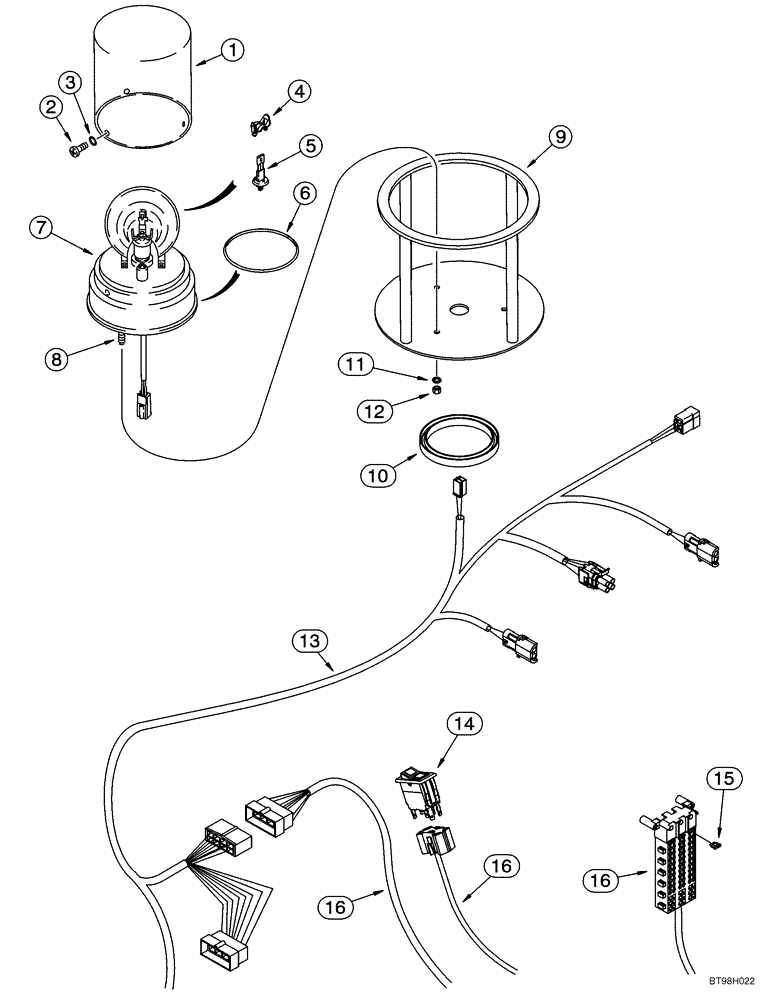

Запчасти Case 921C (04-28) - BEACON ASSY, ROTATING - MOUNTING (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

NORTH AMERICA ONLY

1шт.

367751A1

BEACON ROTATING

Beacon; Incl. 1 - 8

1шт.

1

A187542

LENS

Amber; If Used

1шт.

1

127158A1

LENS

Blue; If Used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

Clip

1шт.

5

P40533

LAMP

Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

Base; Incl. Drive Motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

193897A2

CAGE

1шт.

10

L109042

GASKET

350 mm (13-13/16 in); Cut From F42827

1шт.

11

892-11006

LOCK WASHER,M6

3шт.

12

825-1406

NUT,M6, Cl 8

3шт.

13

238764A2

WIRE HARNESS

Cab Roof

1шт.

14

374430A2

BEACON SWITCH

Rotating Beacon

1шт.

15

A149800

FUSE,10 Amp

10 amp

1шт.

16

REF

INSTRUCTION

HARNESS Cab Main; SEE FIG 04-09

1шт.
