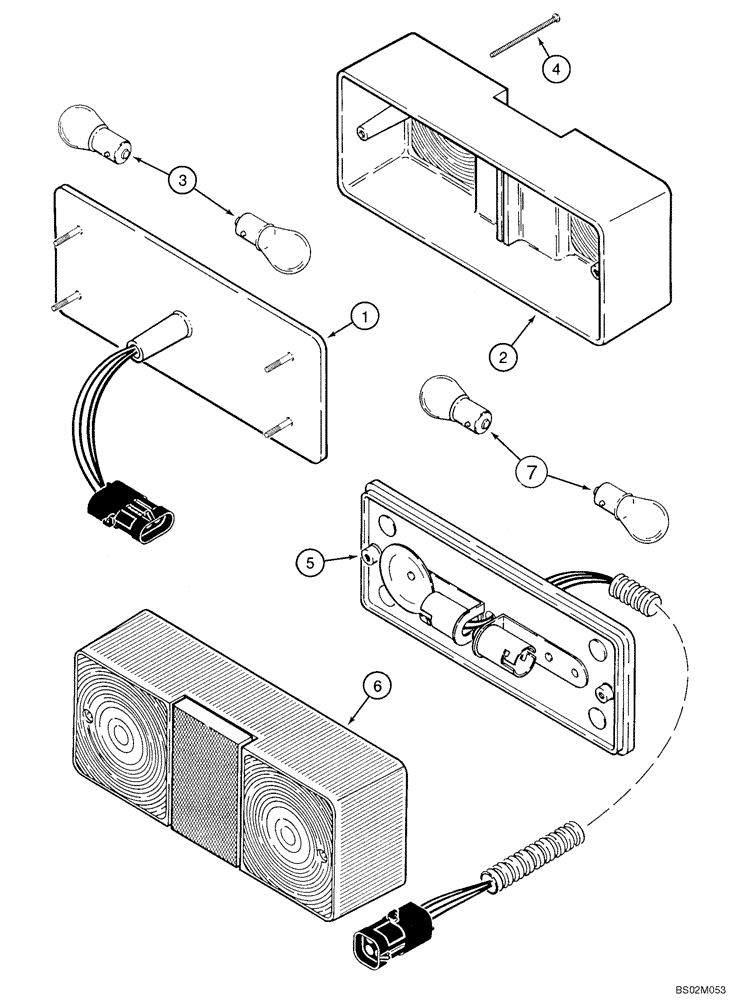

Запчасти Case 921C (04-27) - LAMPS - TURN SIGNAL, FLASHER, STOP AND TAIL (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

NORTH AMERICA ONLY

1шт.

REF

INSTRUCTION

TURN SIGNAL AND FLASHER LAMP

1шт.

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Right-Hand; Incl. 1 - 4

1шт.

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

Left-Hand; Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

A186293

LENS

1шт.

3

A15084

LAMP

24V, 1 amp

2шт.

4

226668A1

SCREW,M3.5 x 45mm

2шт.

REF

INSTRUCTION

STOP AND TAIL LAMP

1шт.

411778A1

LAMP, TAIL

LIGHT, TAIL Right-Hand; Incl. 5 - 7

1шт.

411777A1

LAMP, TAIL

LIGHT, TAIL Left-Hand; Incl. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

A186295

LENS

1шт.

7

A15084

LAMP

24V, 1 amp

2шт.
