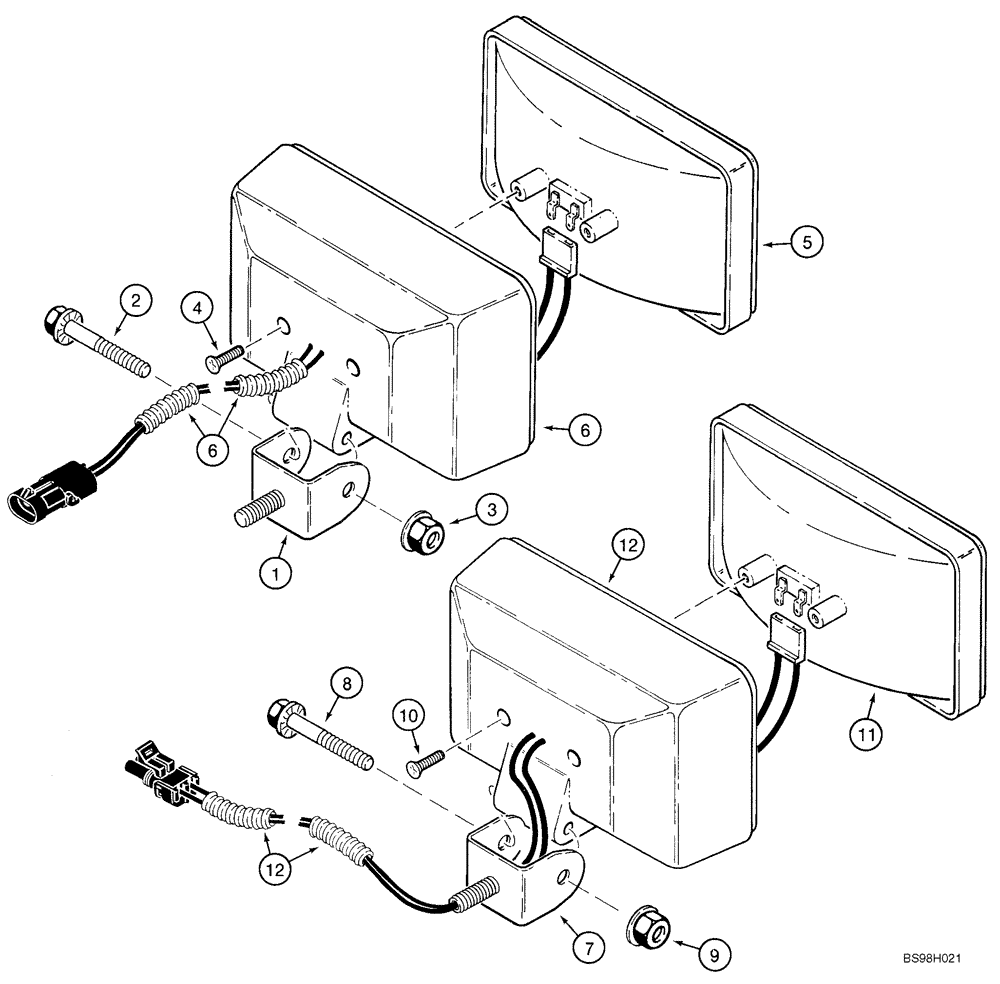

Запчасти Case 921C (04-26) - LAMP ASSY, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

NORTH AMERICA ONLY

1шт.

REF

INSTRUCTION

FRONT LAMP

1шт.

A187519

LIGHT ASSY.,24V, 70W, Clear

Front, Drive

2шт.

1

A187913

SUPPORT

Incl. 1 - 6

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

103654A1

HEADLIGHT,Halogen, 24V, 60W

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

REF

INSTRUCTION

FRONT AND REAR FLOOD LAMPS

1шт.

REF

INSTRUCTION

CAB OR CANOPY FLOOD LAMPS

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

Incl. 7 - 12

4шт.

7

A187913

SUPPORT

1шт.

8

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

11

103653A1

HEADLIGHT,24V, 60W

1шт.

12

NSS

NOT SOLD SEPARAT

Housing

1шт.
