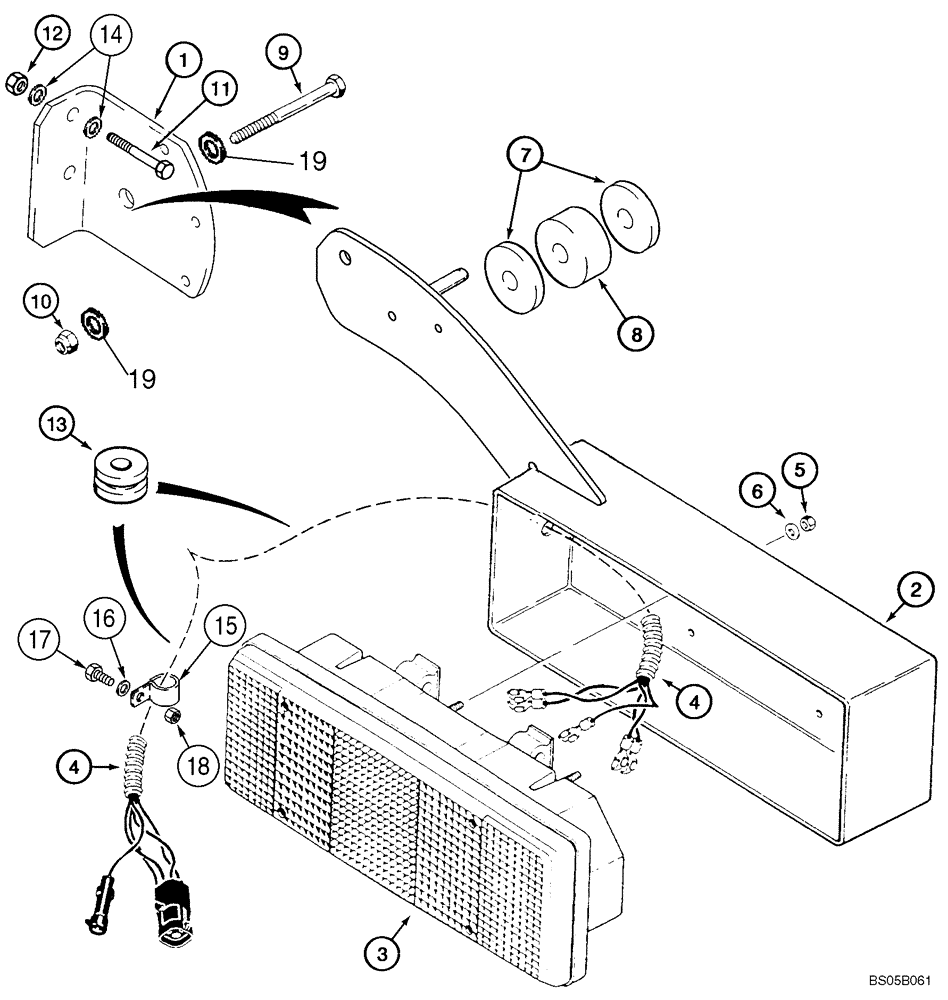

Запчасти Case 921C (04-23) - MOUNTING - LAMPS, REAR COMBINATION (Nov 30 2009 3:04PM) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

EUROPE ONLY

1шт.

1

E137360

SUPPORT

Combination Lamp; Right Hand

1шт.

1

E137357

SUPPORT

Combination Lamp; Left Hand; Not Illustrated

1шт.

2

339845A1

SUPPORT

Combination Lamp; Right Hand

1шт.

2

E137359

SUPPORT

Combination Lamp; Right Hand; Replaces 339845A1

1шт.

2

339846A1

SUPPORT

Combination Lamp; Left Hand; Not Illustrated

1шт.

2

E137361

SUPPORT

Combination Lamp; Left Hand; Not Illustrated; Replaces 339846A1

1шт.

3

E133218

LAMP, TAIL

LIGHT, TAIL Combination; Right Hand; See Figure 04-24

1-2шт.

3

E133219

LAMP, TAIL

LIGHT, TAIL Combination; Left Hand; See Figure 04-24; Not Illustrated; If Used

1шт.

4

413558A1

HARNESS

Combination Lamp

2шт.

5

825-1408

NUT,M8, Cl 8

If used

4шт.

6

892-11008

LOCK WASHER,8mm ID

If Used

4шт.

7

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

8

120841A1

WASHER

Rubber

2шт.

9

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

3/4 x 3-1/4; 8

2шт.

10

231-14412

LOCK NUT,3/4"-10, GB

2шт.

11

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

12

829-1412

NUT,M12, Cl 10.9

4шт.

13

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

If Used

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

15

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

19

495-81037

WASHER,25/32" x 1 1/4" x .060"

1шт.

17

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.
