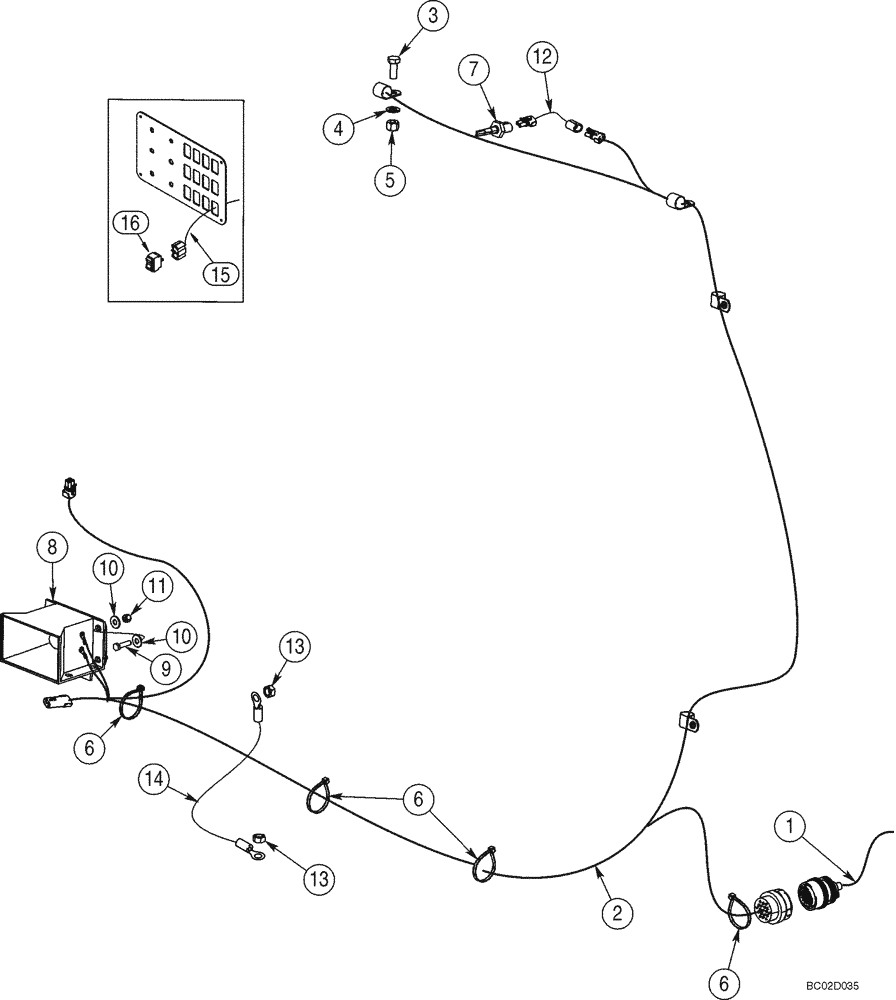

Запчасти Case 921C (04-22) - MOUNTING - BACKUP ALARM (Nov 30 2009 2:42PM) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

EUROPEAN MODELS

1шт.

1

426169A2

HARNESS

Harness; Rear Chassis; See Figure 04-13

1шт.

2

86985372

HARNESS

Rear Lamps

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

7

419792A1

SENSOR

Coolant Level

1шт.

8

D121972

ALARM

Backup

1шт.

9

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

10

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

8шт.

11

832-10406

NUT,M6 x 1, Cl 8

4шт.

12

445786A1

WIRE HARNESS

Jumper

1шт.

13

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

2шт.

14

448423A1

HARNESS

Ground

1шт.

15

REF

INSTRUCTION

HARNESS Cab Main; SEE FIG 04-09

1шт.

16

374433A3

SWITCH

Backup Alarm Disable

1шт.
