(04-20) - LAMPS - CLEARANCE, FRONT AND REAR (Nov 30 2009 2:27PM)

Запчасти Case 921C (04-20) - LAMPS - CLEARANCE, FRONT AND REAR (Nov 30 2009 2:27PM) (04) - ELECTRICAL SYSTEMS

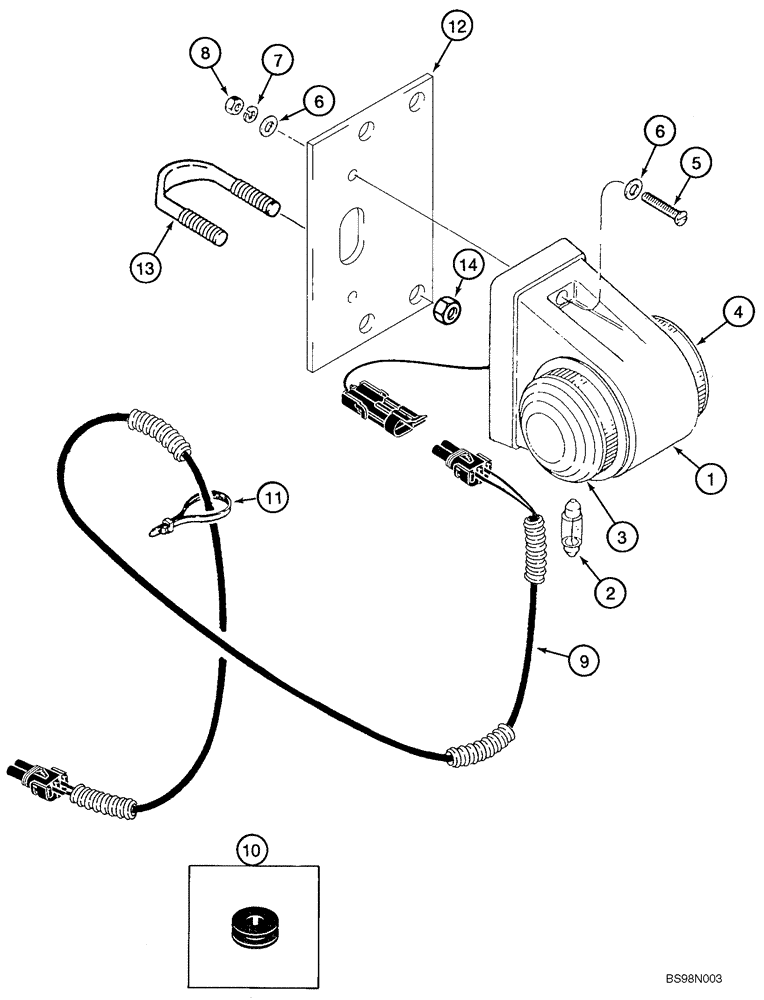

Схема запчастей Case 921C - (04-20) - LAMPS - CLEARANCE, FRONT AND REAR (Nov 30 2009 2:27PM) (04) - ELECTRICAL SYSTEMS
2
12
5
9
6
10
11
8
1
6
13
3
4
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

EUROPE ONLY

1шт.

370784A1

LIGHT

Clearance; Rear; Incl. 1 - 8

4шт.

370785A1

LIGHT

Clearance; Front; Incl. 1 - 8

4шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

E136074

BULB

24V 5W

1шт.

3

E131567

LENS

Red

1шт.

4

E131568

LENS

Clear

1шт.

5

FE276

SCREW

3/16 x 40 mm

2шт.

6

FE4001

WASHER

5,3 mm

4шт.

7

FE4201

LOCK WASHER

5 mm

2шт.

8

FE2000

NUT

3/16 in

2шт.

9

E133131

HARNESS

Rear Lamps

2шт.

10

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

12

327564A1

LARGE PLATE

PLATE, LARGE

2шт.

13

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

4шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.
