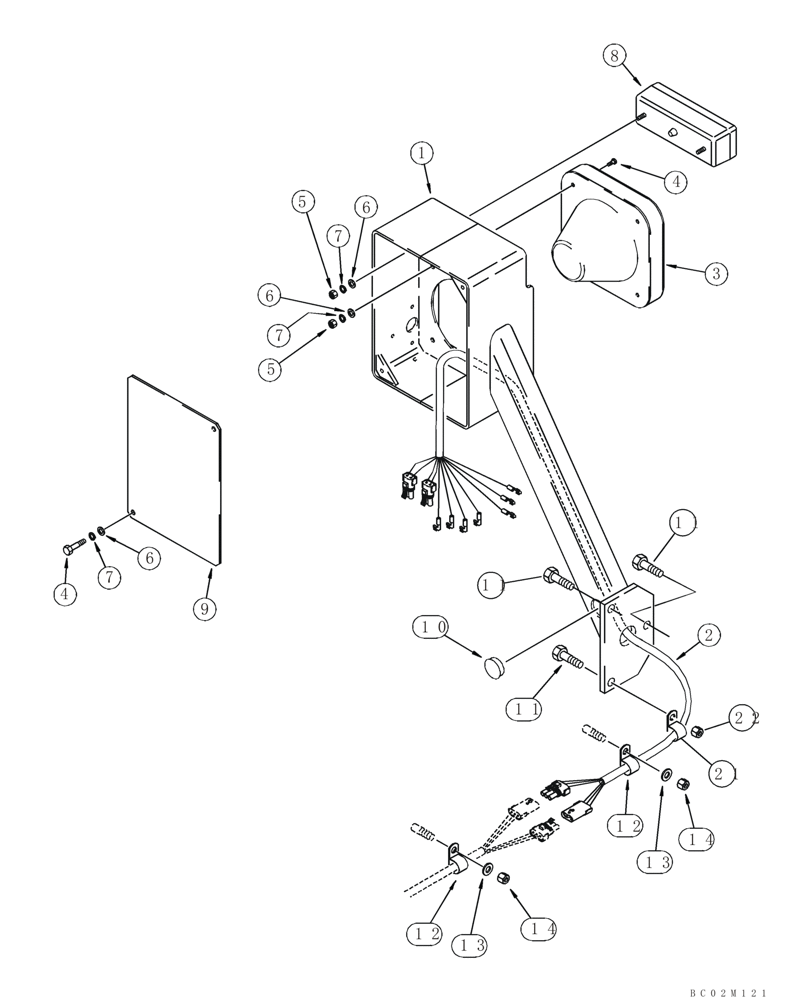

Запчасти Case 921C (04-17B) - MOUNTING - LAMPS, FRONT (Nov 13 2008 2:50PM) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

EUROPE ONLY

1шт.

1

349447A2

SUPPORT

Front Lamp; Right Hand; Not Illustrated

1шт.

1

349448A2

SUPPORT

Front Lamp; Left Hand

1шт.

2

279524A3

HARNESS

Front Lamp

2шт.

3

E133214

HEADLIGHT,Halogen, 24V, 70W

See Figure 04-18

2шт.

4

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

4-12шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4-12шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8-16шт.

7

892-11006

LOCK WASHER,M6

8-16шт.

8

E133215

TAIL LAMP

Turn Signal; See Figure 04-19

2шт.

9

E132226

LARGE PLATE

PLATE, LARGE

2шт.

10

353-422

PLUG,Dome, 1.250" hole, Nylon

2шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4-6шт.

12

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

14

231-1446

NUT,3/8" - 16, Gr 5

4шт.

17

197102A1

BULB

1шт.

21

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

2шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
