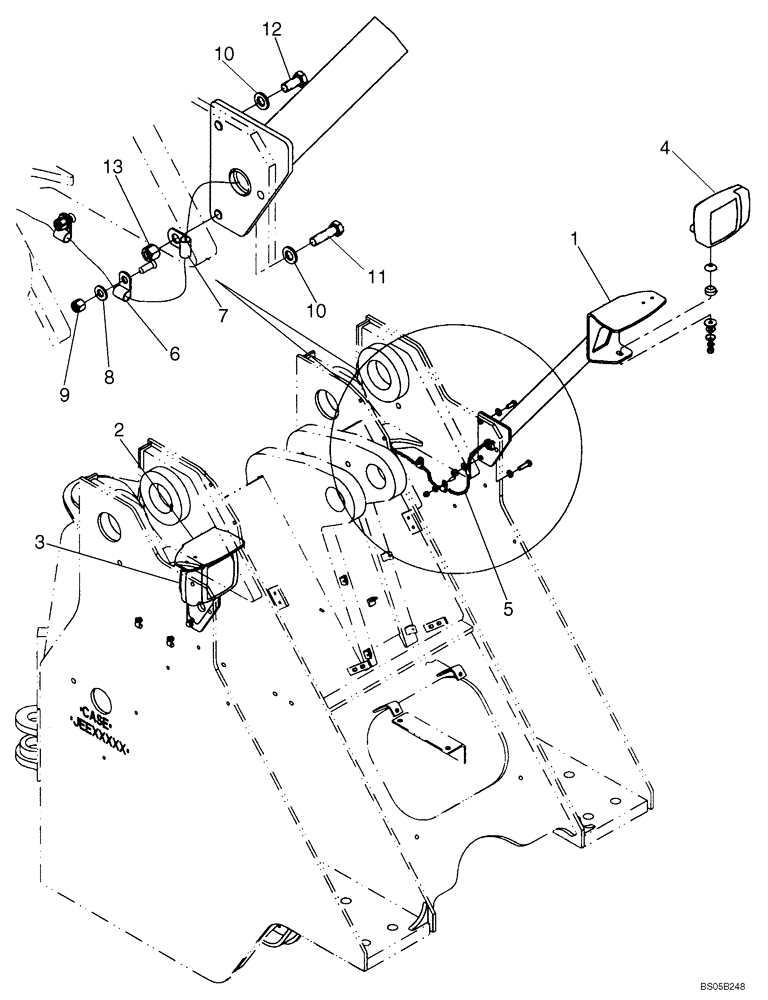

Запчасти Case 921C (04-17A) - MOUNTING - LAMPS, FRONT - IF USED (Jul 20 2009 3:10PM) (04) - ELECTRICAL SYSTEMS

1

87328540

BRACKET

Bracket; Left Hand

1шт.

2

87328539

BRACKET

Bracket; Right Hand

1шт.

3

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Right Hand; Includes Hardware; See Figure 04-19

1шт.

4

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Left Hand; Includes Hardware; See Figure 04-19

1шт.

5

87328599

HARNESS

Harness; Front Light

1шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

7

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

(12.7 mm: M12 Bolt)

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
