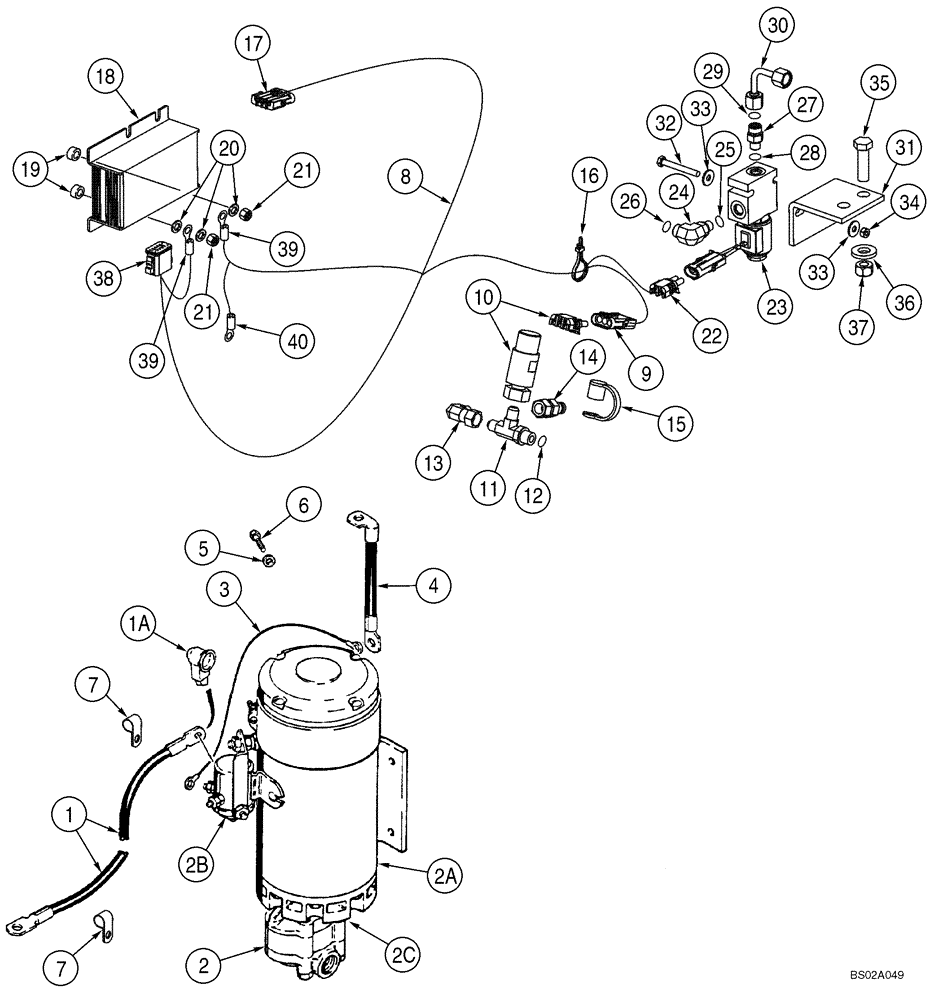

Запчасти Case 921C (04-16) - ELECTRICAL STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

1

248006A1

CABLE

Auxiliary Steering

1шт.

1a

L126713

BOOT

1шт.

197540A1

PUMP, HYDRAULIC

Auxiliary Steering; Incl. 2 - 3

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

2a

258042A1

MOTOR, ELECTRIC

1шт.

2b

258043A1

SOLENOID SWITCH

24V

1шт.

2c

258044A1

GASKET

1шт.

2d

258045A1

SEAL KIT

Steering Pump; Not Illustrated

1шт.

2e

S64612

BOOT

Not Illustrated

2шт.

3

NSS

NOT SOLD SEPARAT

Wire

1шт.

4

239955A1

CABLE ASSY.

1080 mm (42-1/2 in); Ground

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Use existing hardware

2шт.

8

407602A3

HARNESS

Auxiliary Steering

1шт.

9

245485C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

10

406398A1

SWITCH

Auxiliary Steering

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

14

101792A1

COUPLING

1шт.

15

H434163

DUST CAP

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

17

245487C1

ELEC CONNECTOR,Male, 4 Pin

Harness; Rear Chassis

1шт.

18

397040A3

MODULE

Auxiliary Steering

1шт.

18

8603171

MODULE

Auxiliary Steering; Replaces 397040A3

1шт.

19

D35859

SPACER

2шт.

20

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

245482C1

ELEC CONNECTOR,2 Pin

1шт.

23

413158A1

VALVE

Auxiliary Steering

1шт.

24

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl. 25, 26

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

27

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl. 28, 29

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

30

414857A1

TUBE

1шт.

31

414801A1

BRACKET

1шт.

32

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

33

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

34

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

35

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

36

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

37

829-1412

NUT,M12, Cl 10.9

2шт.

38

225389C1

CONNECTOR, ELEC

CONNECTOR

1шт.

39

1964706C1

TERMINAL CONNECTOR

2шт.

40

1964703C1

TERMINAL CONNECTOR

1шт.
