Запчасти Case 921C (04-15) - BATTERY - CABLES (Sep 14 2010 9:09AM) (04) - ELECTRICAL SYSTEMS

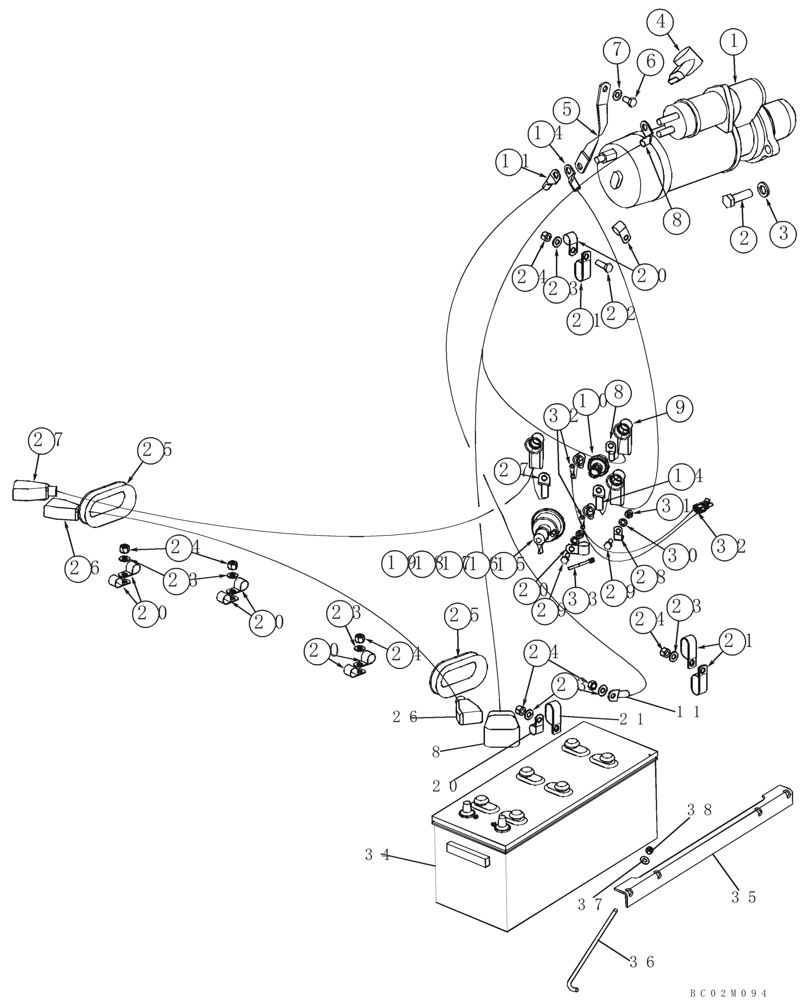

Схема запчастей Case 921C - (04-15) - BATTERY - CABLES (Sep 14 2010 9:09AM) (04) - ELECTRICAL SYSTEMS
21
21
18
23
28
36
21
27
19
20
38
20
30
35
11
29
20
7
3
22
26
24
14
9
5
26
2
27
17
29
31
8
37
33
23
11
14
32
34
6
24
24
23
10
8
20
20
23
16
24
8
24
15
1
23
25
32
20
25
bc02m094
4

Артикул

Название

Примечание

Количество

1

L128521

STARTING MOTOR

24 V; See Figure 04-02

1шт.

1

LR128521

REMAN-STARTER

Remanufactured Starter

1шт.

1

LC128521

CORE-STARTER

Return Number

1шт.

2

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

3шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

4

357906A1

BOOT

1шт.

5

434716A1

GROUND STRAP

Ground

1шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

8

434996A1

NEG BATTERY CABLE

Battery To Starter; includes one battery connection and two ring terminals

1шт.

8

87330407

NEG BATTERY CABLE

Battery To Starter; one battery connection and one ring terminal

1шт.

9

L126713

BOOT

2шт.

10

582785C91

TERMINAL CONNECTOR

If Used

1шт.

11

434962A1

NEG BATTERY CABLE

Starter Negative To Chassis Ground

1шт.

12

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

13

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

1шт.

14

434954A1

NEG BATTERY CABLE

Starter Negative To Disconnect Switch

1шт.

L126256

SWITCH

Disconnect Switch; Incl. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

Body

1шт.

16

129-187

NUT,5/16"-24, Brass

6шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

131-573

NUT,#10-32

4шт.

19

492-11010

LOCK WASHER,#10

4шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

11шт.

21

L101181

CLAMP,0.75" D Clamping pipes x 2

2шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

25

436250A1

CONDUIT

Battery Cable

2шт.

26

434890A1

NEG BATTERY CABLE

Battery To Battery

1шт.

27

434930A1

NEG BATTERY CABLE

Battery Negative To Disconnect

1шт.

28

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

29

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

32

L127676

WIRE HARNESS

Disconnect

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

34

BHC4DA

BATTERY, DRY

BATTERY DRY 12V

2шт.

35

L124221

SUPPORT

Battery Bracket

2шт.

36

365357A1

ROD

Battery Hold-down

4шт.

37

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 42
