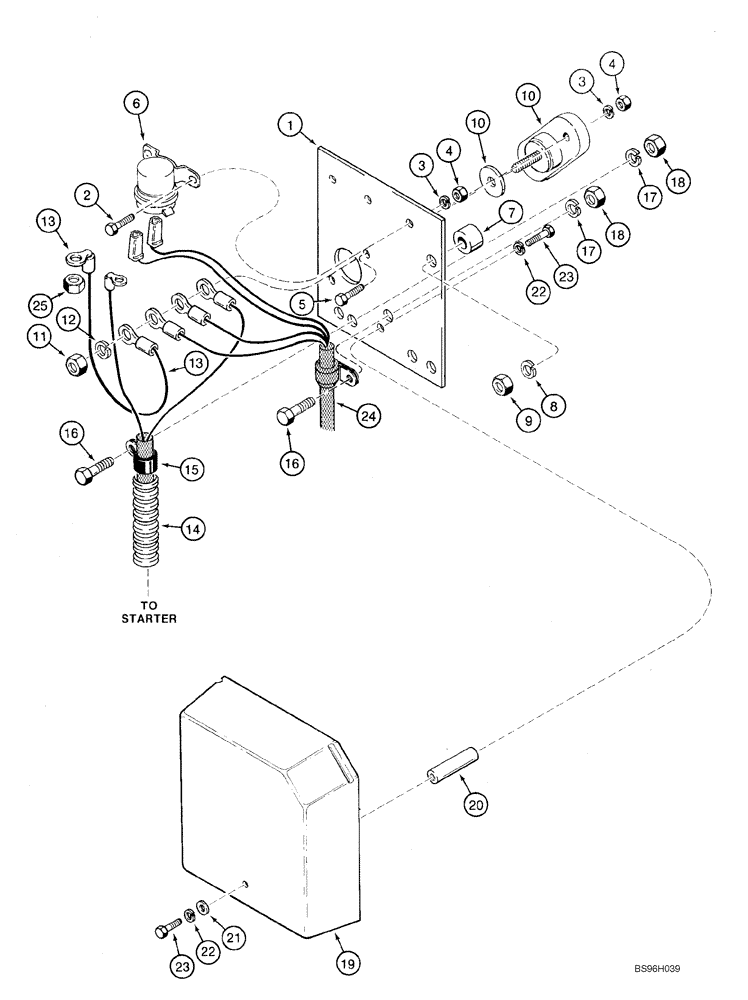

Запчасти Case 921C (04-14) - HARNESS, REAR - RELAY PANEL (Nov 30 2009 2:42PM) (04) - ELECTRICAL SYSTEMS

1

125058A1

LARGE PLATE

PLATE, LARGE Relay

1шт.

2

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

5

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

6

120398A1

RELAY

24v

1шт.

7

D44696

BUSHING

2шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

L124085

CONNECTOR, ELEC

CONNECTOR Terminal; Incl. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Body

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

244375A1

HARNESS

Jumper

1шт.

14

244594A1

HARNESS

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

19

L114612

COVER

1шт.

20

253065A1

SPACER

Relay Cover

1шт.

21

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

1шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

24

230864A1

HARNESS

Relay

1шт.

25

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.
