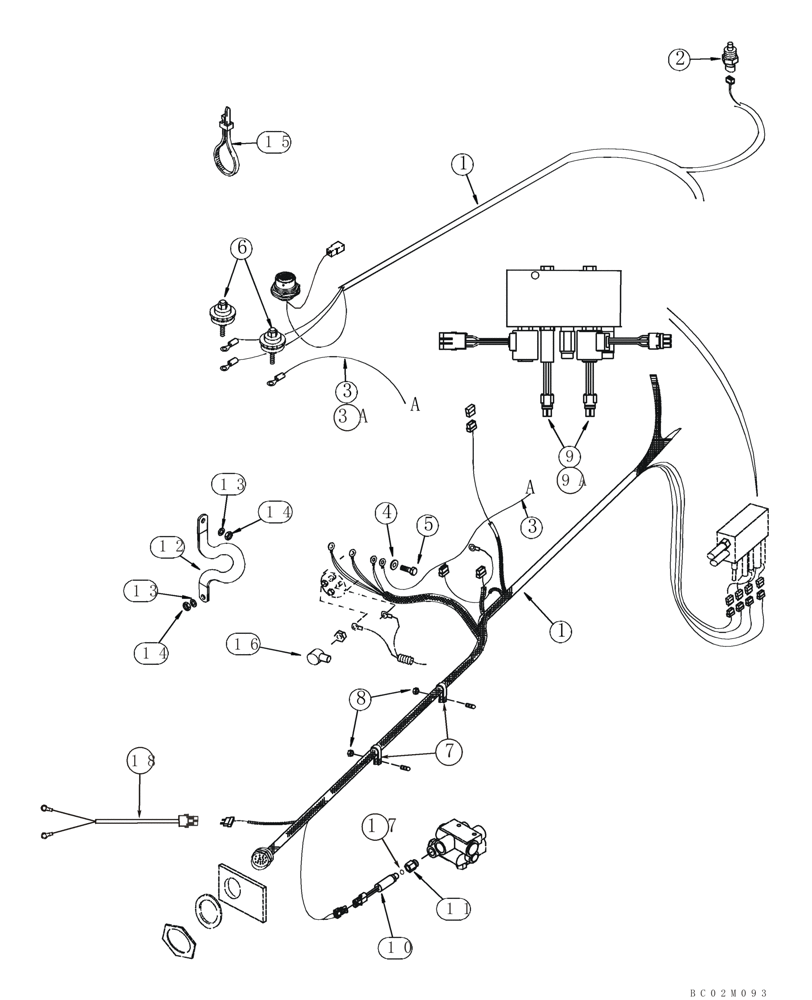

Запчасти Case 921C (04-13) - HARNESS, REAR CHASSIS (Sep 25 2007 1:25PM) (04) - ELECTRICAL SYSTEMS

1

426169A2

HARNESS

Rear Chassis

1шт.

2

321446A1

SENSOR

Hydraulic Oil Temperature

1шт.

3

450615A1

ELECTRICAL WIRE

WIRE 1720 mm (67-3/4 in); Engine Ground

1шт.

4

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

6

319055A1

JUNCTION BLOCK

2шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

L128914

PRESSURE SWITCH

Hydraulic Declutch

2шт.

10

232563A1

SWITCH, PRESSURE

PRESSURE SWITCH Hydraulic Warning

1шт.

11

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

1шт.

12

L126051

GROUND STRAP

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

14

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

16

L126713

BOOT

1шт.

18

329571A1

HARNESS

Fuel Level Sender

1шт.

9a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
