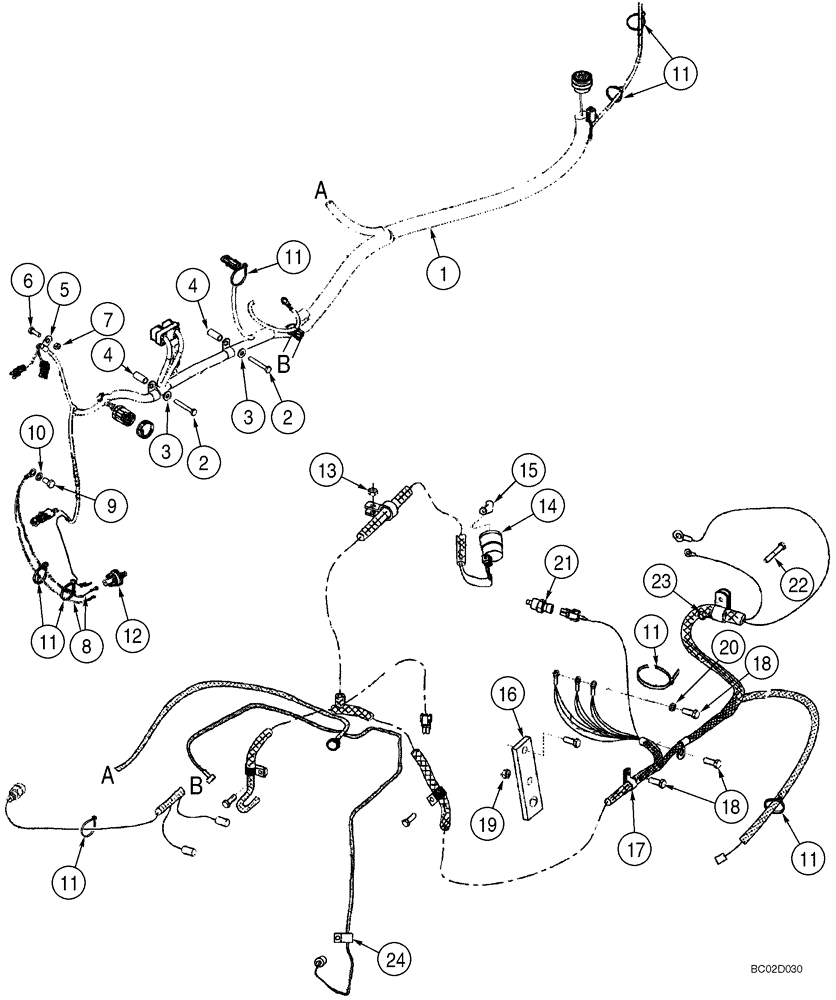

Запчасти Case 921C (04-12) - HARNESS, REAR (Aug 27 2008 2:43PM) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

ENGINE AND TRANSMISSION

1шт.

1

430240A2

HARNESS

Engine and Transmission

1шт.

2

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

4

L126936

SPACER

2шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

404222A1

ELECTRICAL WIRE

WIRE Ground

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

11шт.

12

404224A1

SENDER UNIT

SENDER Oil Pressure; See Figure 02-09, REF 1

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

293797A1

RESTRICTION SWITCH

Air Cleaner

1шт.

15

221-365

ELBOW,45 Degree, 1/8" NPT

1шт.

16

451823A1

PLATE

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

20

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

21

321446A1

SENSOR

Engine Temperature

1шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

24

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

22

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
