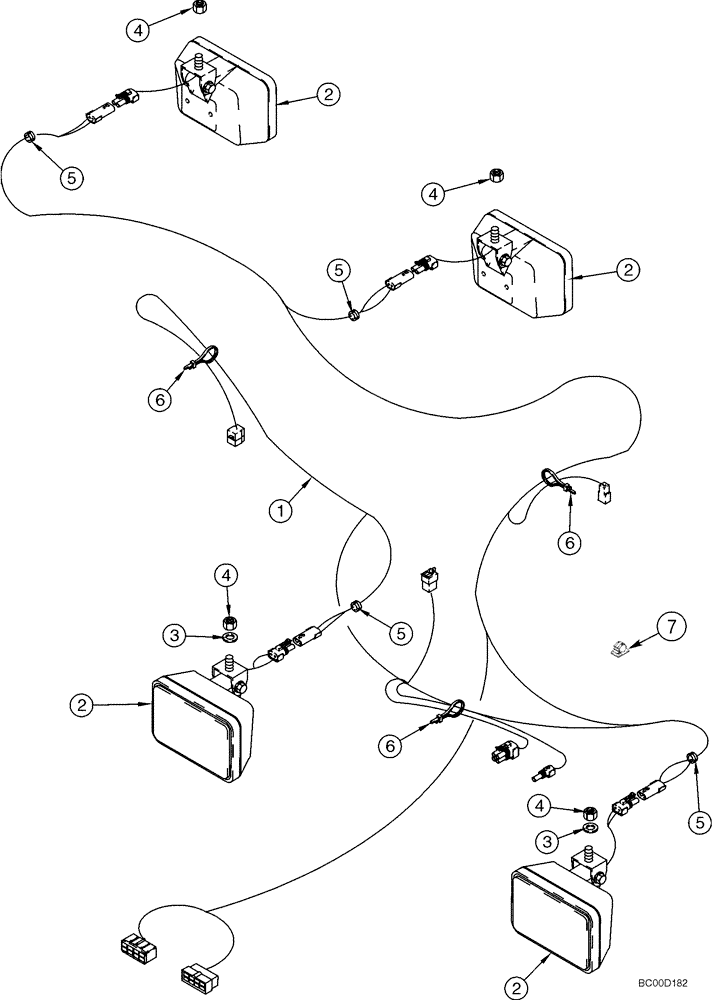

Запчасти Case 921C (04-07) - HARNESS - CANOPY ROOF (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

NORTH AMERICA ONLY

1шт.

1

238764A2

WIRE HARNESS

Canopy Roof

1шт.

2

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood; See Figure 04-26

4шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

4

131-1402

THIN NUT,1/2"-13, GB, Thin

4шт.

5

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

4шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie

1шт.

7

169850C2

CABLE CLIP

Adhesive Back

2шт.
