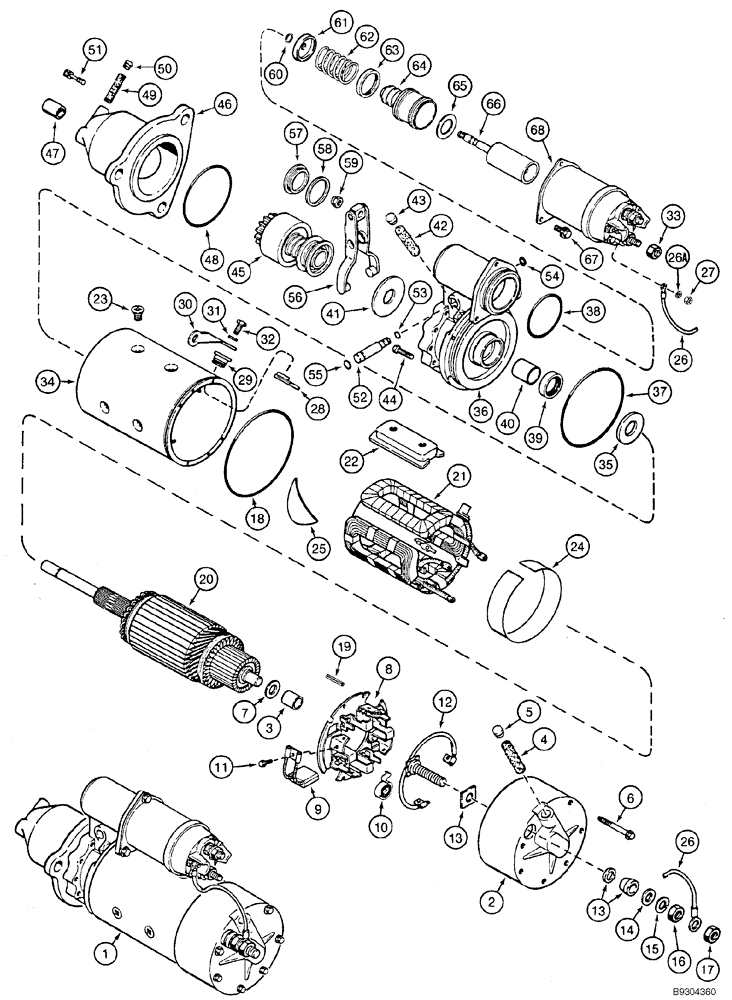

Запчасти Case 921C (04-02) - STARTER ASSY (Sep 14 2010 9:08AM) (04) - ELECTRICAL SYSTEMS

1

L128521

STARTING MOTOR

24 V; Incl. 2 - 68; For Mounting, See Figure 04-15

1шт.

1

LR128521

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

1

LC128521

CORE-STARTER

Return number - For N.A. only

1шт.

2

A187561

COVER

Commutator End; Incl. 3 - 5

1шт.

3

A40868

BUSHING

1шт.

4

A49769

WICK

Oil

1шт.

5

A49573

PLUG

1шт.

6

A187511

CAPTIVE WASHER SCREW

With Washer and Seal

6шт.

7

95-81175

WASHER,0.69" ID x 1.12" OD x 0.11" Thk

11/16 x 1-1/8 x 1/8

1шт.

8

A49778

BRUSH ASSY.

1шт.

9

A49777

COMMUTATOR BRUSH

4шт.

10

A49575

SPRING

4шт.

11

A47894

SCREW,#8 - 32 x 5/16"

4шт.

12

A49764

TERMINAL CONNECTOR

1шт.

A187513

KIT

Brush; Incl. 6, 9 - 11, 18

1шт.

A187514

KIT

Bushing; Incl. 3 - 7, 18, 35, 37 - 43, 47 - 50

1шт.

13

A49768

KIT

Terminal; Commutator End

1шт.

14

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

33/64 x 7/8 x 1/16

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

A47890

NUT

1/2

1шт.

18

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

20

A49770

ARMATURE

1шт.

21

A49776

COIL ASSY.

1шт.

22

R15115

SHOE

4шт.

23

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

8шт.

24

A49767

RUBBER INSULATOR

1шт.

25

A41977

RUBBER INSULATOR

2шт.

26

A47895

ELECTRICAL WIRE

WIRE Field Coil, Serial Range: Terminal-Solenoid

1шт.

26

492-11010

LOCK WASHER,#10

1шт.

27

129-667

NUT,#10-32, LH

1шт.

28

A49501

RUBBER INSULATOR

1шт.

29

A49500

RUBBER INSULATOR

1шт.

30

A49779

TERMINAL CONNECTOR

1шт.

31

A42100

WASHER

1шт.

32

10497770

BOLT,Torx Hd, 1/4" - 20

1/4 NC x 35/64

1шт.

33

A47890

NUT

1/2

1шт.

34

NSS

NOT SOLD SEPARAT

Frame

1шт.

35

A40892

WASHER

13/16 x 1-3/4 x 3/16

1шт.

36

A49772

HOUSING

1шт.

37

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

38

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

39

R21582

OIL SEAL

1шт.

40

A49765

BUSHING

1шт.

41

A185121

WASHER

1шт.

42

A49567

WICK

Oil

1шт.

43

A49573

PLUG

1шт.

44

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1/4 NF x 1

5шт.

45

20-1343T1

DRIVE ASSY.

1шт.

46

A49773

HOUSING

1шт.

47

A47257

BUSHING

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

1шт.

49

A47888

WICK

Oil

1шт.

50

A47889

PLUG

1шт.

51

1546551C1

BOLT,Torx Hd, 5/16" - 18 x 0.86"

5/8 x 7/8

1шт.

52

A42199

PIN

1шт.

53

A47259

O-RING,0.244" ID x 0.391" OD

1шт.

54

100-1137

SNAP RING,#37, Ext

1шт.

55

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

56

A49775

LEVER

1шт.

57

R21587

PLUG

1шт.

58

A41924

GASKET

1шт.

59

131-489

LOCK NUT,5/16"-24, G8

5/16 NF

1шт.

60

100-1137

SNAP RING,#37, Ext

1шт.

61

A43419

SEAT

1шт.

62

A41242

SPRING

1шт.

63

A43380

BACK-UP RING

1шт.

64

A49589

BOOT

1шт.

65

A41922

WASHER

1шт.

66

A49757

PLUNGER

1шт.

67

10497770

BOLT,Torx Hd, 1/4" - 20

1/4 NC x 35/64

3шт.

68

1546546C1

SOLENOID

See Figure 04-2A

1шт.

A187513

KIT

Brush; Incl. 6, 9 - 11, 18

1шт.

A187514

KIT

Bushing; Incl. 3 - 7, 18, 35, 37 - 43, 47 - 50

1шт.

A187515

KIT

Shift Lever; Incl. 18, 38, 48, 52, 53, 55, 56, 58, 59

1шт.
