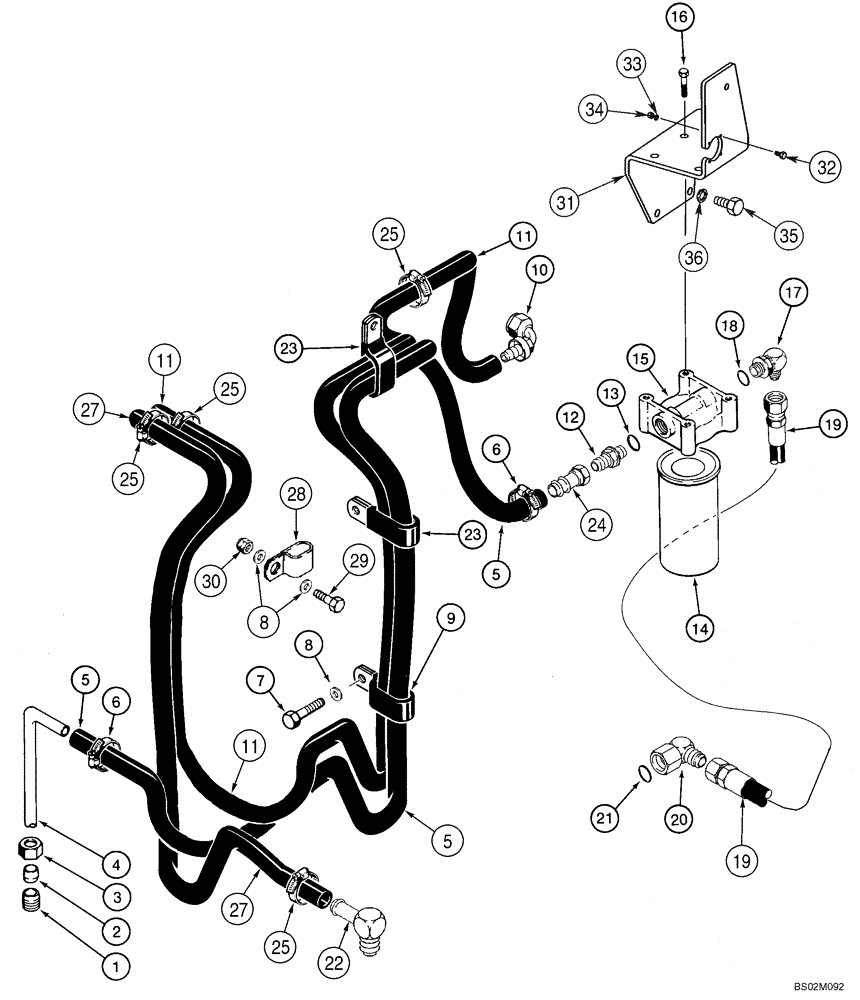

Запчасти Case 921C (03-03) - FUEL LINES - FILTER, FUEL (03) - FUEL SYSTEM

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1/2 tube OD x 1/2 PT; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

222-656

SLEEVE

1/2 tube OD

1шт.

3

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

1/2 tube OD x 11/16

1шт.

4

L128379

FUEL TUBE,12.7 mm OD x 575, 64 mm L

1шт.

5

417252A1

HOSE

1575 mm (62 in); Fuel Supply; Cut From 32-80

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

7

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

9

L101181

CLAMP,0.75" D Clamping pipes x 2

Double

1шт.

10

L129053

ELBOW

1шт.

11

372277A1

HOSE

Fuel Return

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

90-3941T1

SEPARATOR

1шт.

15

103796A1

SUPPORT

1шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

418852A1

HOSE ASSY.

684 mm (27 in); Fuel Injector to Fuel Filter

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Incl. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

23

L101181

CLAMP,0.75" D Clamping pipes x 2

Double; Use Existing Hardware

2шт.

24

31-3129

ADAPTER

7/8

1шт.

25

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1/4 - 5/8

3шт.

27

416733A1

HOSE

1шт.

28

L101181

CLAMP,0.75" D Clamping pipes x 2

2шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

31

433927A1

BRACKET

Fuel Filter

1шт.

32

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

4шт.

33

893-11003

LOCK WASHER,Ext Tooth, M3

4шт.

34

824-1403

NUT,M3, Cl 5

4шт.

35

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

36

893-11003

LOCK WASHER,Ext Tooth, M3

2шт.
