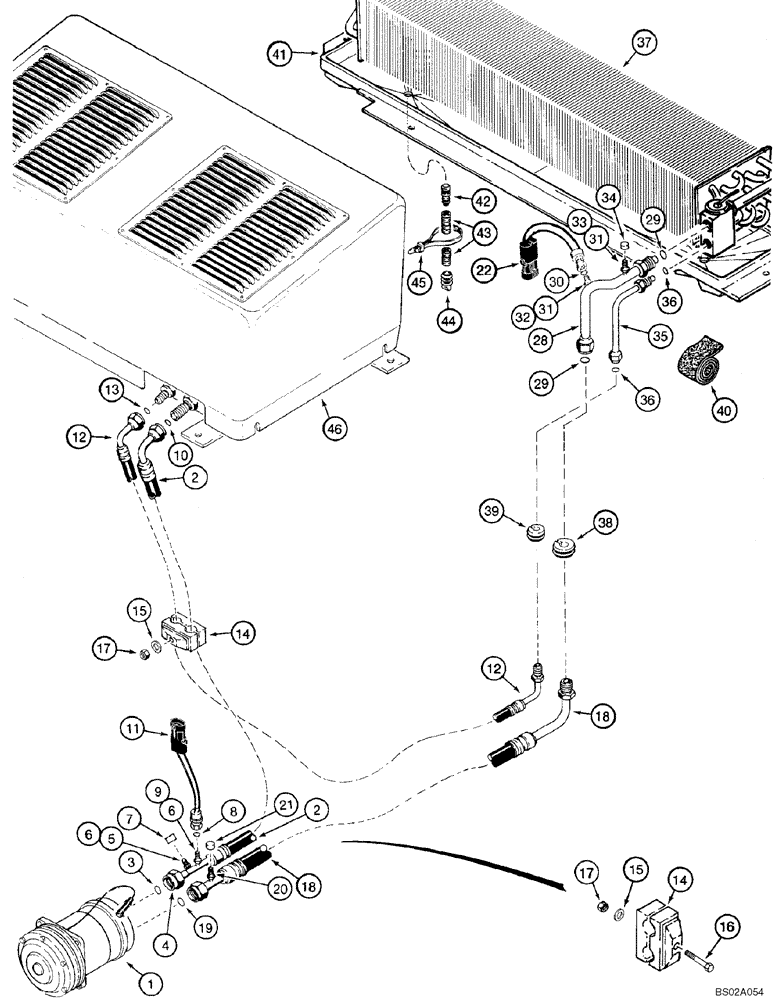

Запчасти Case 921C (09-46) - AIR CONDITIONING (Mar 9 2011 10:28AM) (09) - CHASSIS

COMPRESSOR TO CONDENSER AND EVAPORATOR CORE

1шт.

1

86983967

AIRCOND. COMPRESSOR,24V, W/ Clutch, W/ Pulley

1шт.

Air Conditioning

1шт.

Component Parts Not Serviced Separately

1шт.

See Figure 09-48

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

821C, 921C S/N JEE0155001 & AFTER

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

821C, 921C S/N JEE0155001 & AFTER

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

2

433746A1

HOSE ASSY.

2192 mm (86-5/16 in)

1шт.

Supply

1шт.

Compressor To Condenser

1шт.

Incl. 3 - 10

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

At Compressor Outlet Port

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting

1шт.

6

1250594C1

CORE

2шт.

7

122554A1

CAP

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

9

122081A1

FITTING,M10 x 1.25 x 26.43mm L

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

At Condenser Inlet Port

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

1шт.

High Pressure

1шт.

12

233051A1

HOSE ASSY.

2150 mm (84-3/4 in)

1шт.

Return

1шт.

Condenser To Evaporator Core

1шт.

Incl. 13

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

14

L115095

CLAMP

3шт.

Double

1шт.

15

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

3шт.

16

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

18

233052A1

HOSE ASSY.

2280 mm (89-3/4 in)

1шт.

Evaporator Core To Compressor Inlet Port

1шт.

Incl. 19 - 21

1шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

20

1250594C1

CORE

1шт.

21

122553A1

CAP

1шт.

22

122579A1

SWITCH, A/C LOW PRES

1шт.

Low Pressure

1шт.

28

104399A1

TUBE

1шт.

Upper

1шт.

Incl. 29 - 34

1шт.

29

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

30

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

31

1250594C2

CORE

2шт.

32

NSS

NOT SOLD SEPARAT

Fitting

1шт.

33

NSS

NOT SOLD SEPARAT

Fitting

1шт.

34

122553A1

CAP

1шт.

35

104400A1

TUBE,0.375" OD, 115, 53 mm Length

1шт.

Lower

1шт.

Incl. 36

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

37

233424A1

HEATER

1шт.

Heating and Air Conditioning

1шт.

See Figure 09-44

1шт.

38

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

Upper Tube

1шт.

39

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

1шт.

Lower Tube

1шт.

40

83822C1

TAPE

610 mm (24 in)

1шт.

Air Conditioning Core Tubes

1шт.

Valve, And Hoses

1шт.

Cut From 1954475C1

1шт.

41

1339577C3

PAN

1шт.

Condensation

1шт.

See Figure 09-44

1шт.

Drain Hose To Housing

1шт.

42

1250522C3

FITTING

2шт.

43

106603A1

HOSE,13.00 mm ID x 1219.00 mm

2шт.

Drain

1шт.

From Condensation Pan

1шт.

Cut From 198091C2

1шт.

44

109239C2

CHECK VALVE

2шт.

45

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

46

178301A2

CONDENSER

1шт.

See Figure 09-44

1шт.

At Compressor Inlet Port

1шт.
