(03-01) - CONTROLS - THROTTLE, FOOT (Apr 2 2008 8:25AM)

Запчасти Case 921C (03-01) - CONTROLS - THROTTLE, FOOT (Apr 2 2008 8:25AM) (03) - FUEL SYSTEM

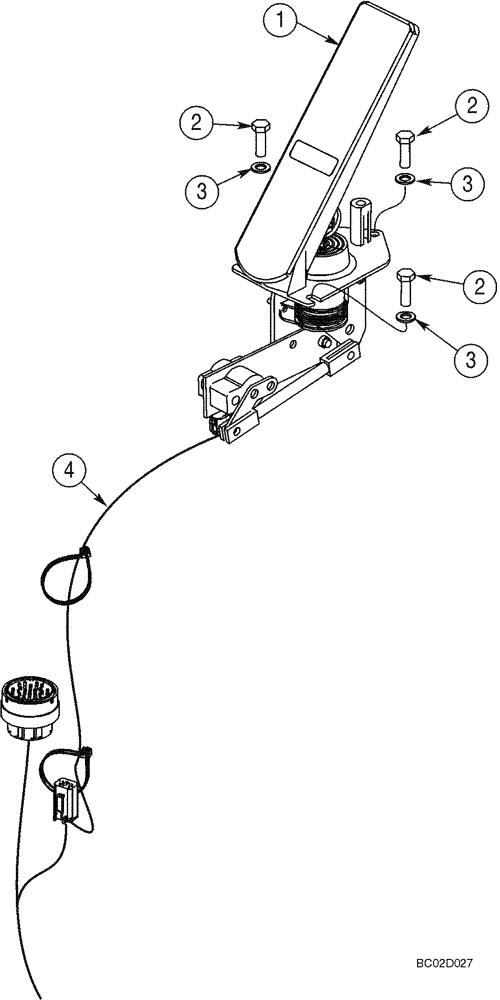

Схема запчастей Case 921C - (03-01) - CONTROLS - THROTTLE, FOOT (Apr 2 2008 8:25AM) (03) - FUEL SYSTEM
2
2
2
1
3
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

EUROPEAN MODELS

1шт.

1

431155A1

ACCELERATOR

For Service, Order 8603126, 8603128, 8603129

1шт.

8603126

REPAIR KIT

Pedal Sensor

1шт.

8603128

REPAIR KIT

Spring

1шт.

8603129

REPAIR KIT

Bellows

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

430240A2

HARNESS

Engine and Transmission

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.
