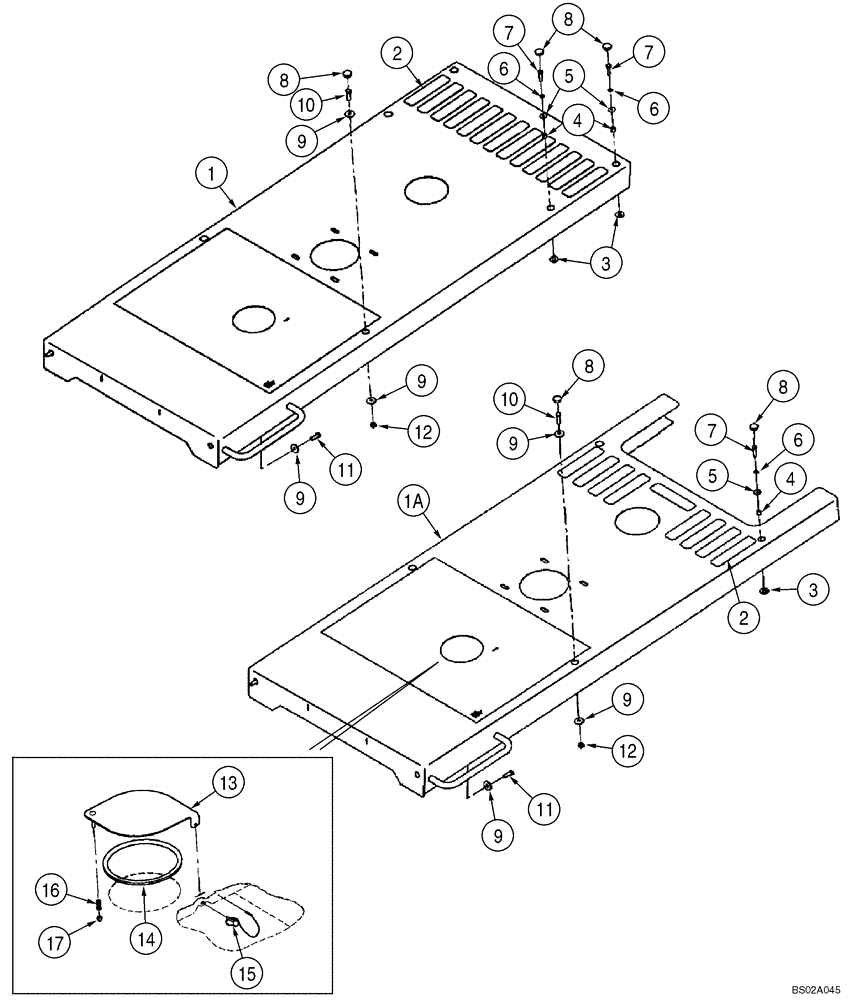

Запчасти Case 921C (09-13) - HOOD (09) - CHASSIS

1

436269A1

HOOD

1шт.

Models Without Air Conditioning

1шт.

North America Only

1шт.

1a

427489A1

HOOD ASSY.

1шт.

Models With Air Conditioning

1шт.

All Models

1шт.

2

D55216

PAD,2" x 9"

2 x 9 in

9-13шт.

Anti Skid

1шт.

3

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2-4шт.

4

D76209

SPACER

2-4шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

2-4шт.

6

892-11010

LOCK WASHER,M10

2-4шт.

7

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2-4шт.

8

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16

4-6шт.

9

195-81030

WASHER

17/32 x 1-1/2 x 3/16

6шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

13

429083A1

DOOR ASSY.

1шт.

14

394134A1

SEAL

578 mm (22-3/4 in)

1шт.

Cut From 26-258

1шт.

15

L60428

PIN

1шт.

16

193884A1

SPRING

1шт.

17

832-10406

NUT,M6 x 1, Cl 8

1шт.
