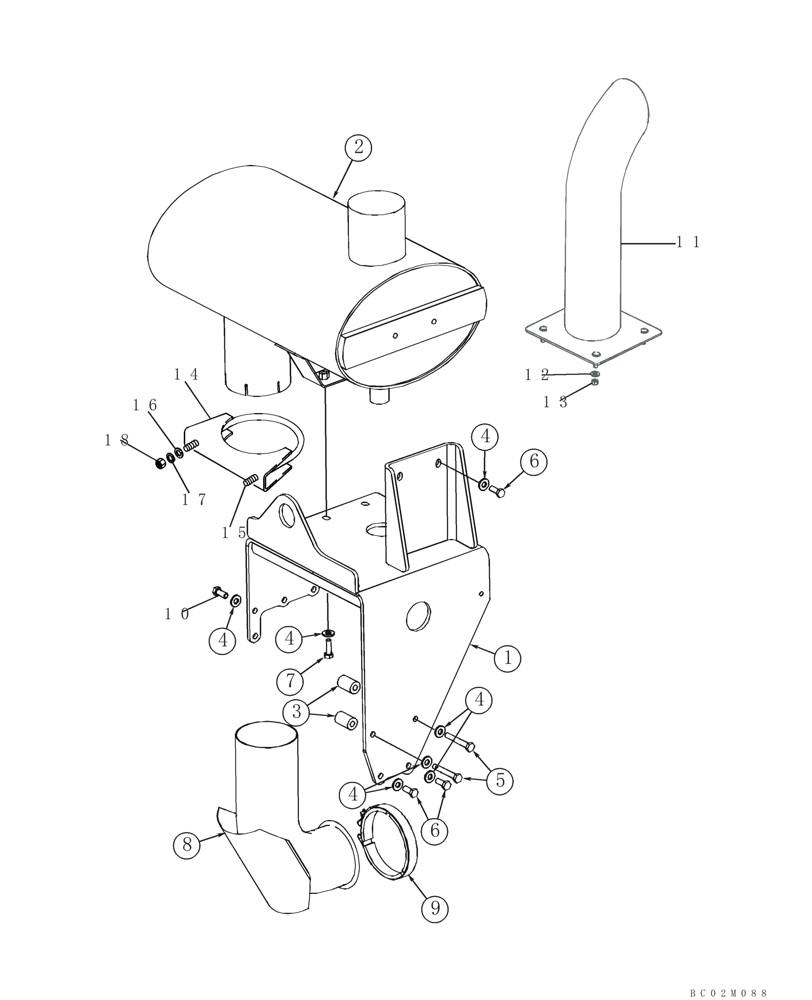

Запчасти Case 921C (02-07) - MUFFLER - EXHAUST SYSTEM (Nov 19 2008 2:30PM) (02) - ENGINE

1

417307A2

PLATE ASSY.

1шт.

2

417306A1

MUFFLER

1шт.

3

90-7181T1

SPACER

2шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

12шт.

5

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

8

426594A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

9

31-1316

MOUNTING CLIP

1шт.

10

627-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

11

429183A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

13

829-1412

NUT,M12, Cl 10.9

4шт.

14

32-323T1

STIRRUP

1шт.

15

32-322T1

U-BOLT,3/8" - 16 x 6.62"

BOLT "U"

1шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.
