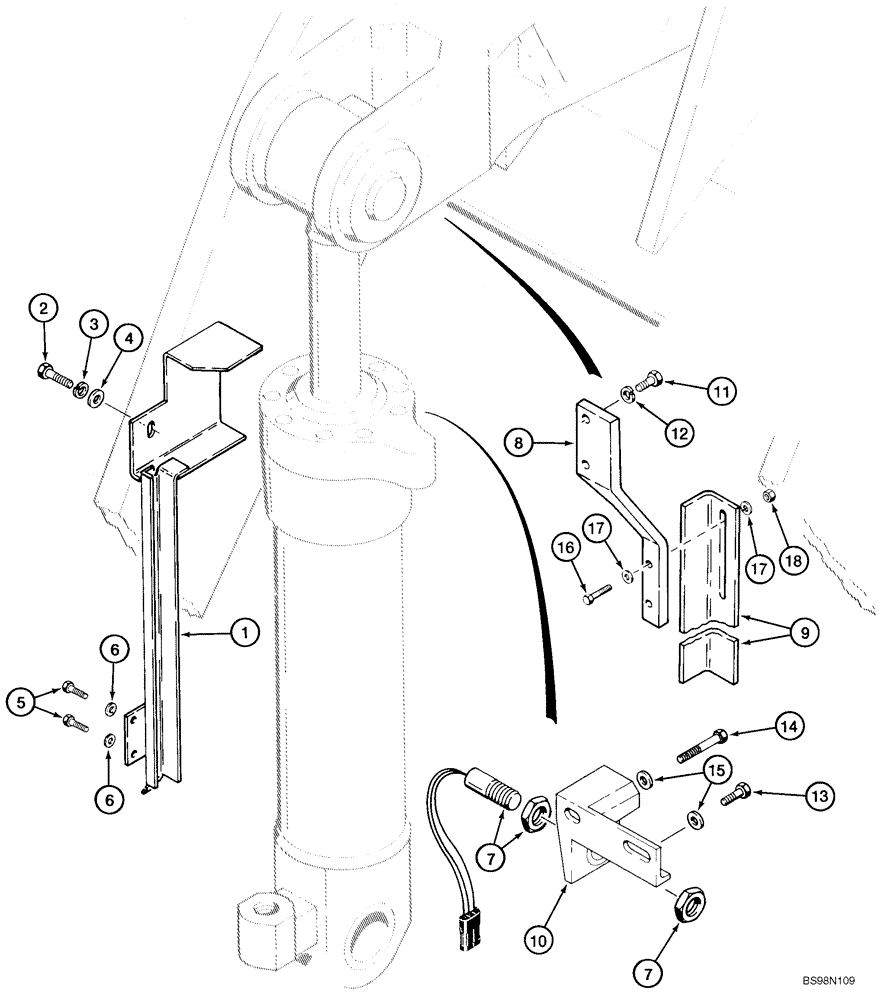

Запчасти Case 921C (09-01) - CONTROL - RETURN-TO-DIG (Mar 11 2010 9:50AM) (09) - CHASSIS

1

L128589

GUARD ASSY.

1шт.

Harness, Return To Dig

1шт.

2

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

4

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

1шт.

5

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

6

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

7

1546497C1

SWITCH

1шт.

Return To Dig

1шт.

Incl. Hardware

1шт.

8

L128592

SUPPORT

1шт.

9

L128593

SUPPORT

1шт.

Sensing

1шт.

Return To Dig

1шт.

10

L125983

SUPPORT

1шт.

Mounting

1шт.

Proximity Switch

1шт.

11

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

14

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.

15

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

16

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

18

231-1448

NUT,1/2"-13, GB

2шт.
