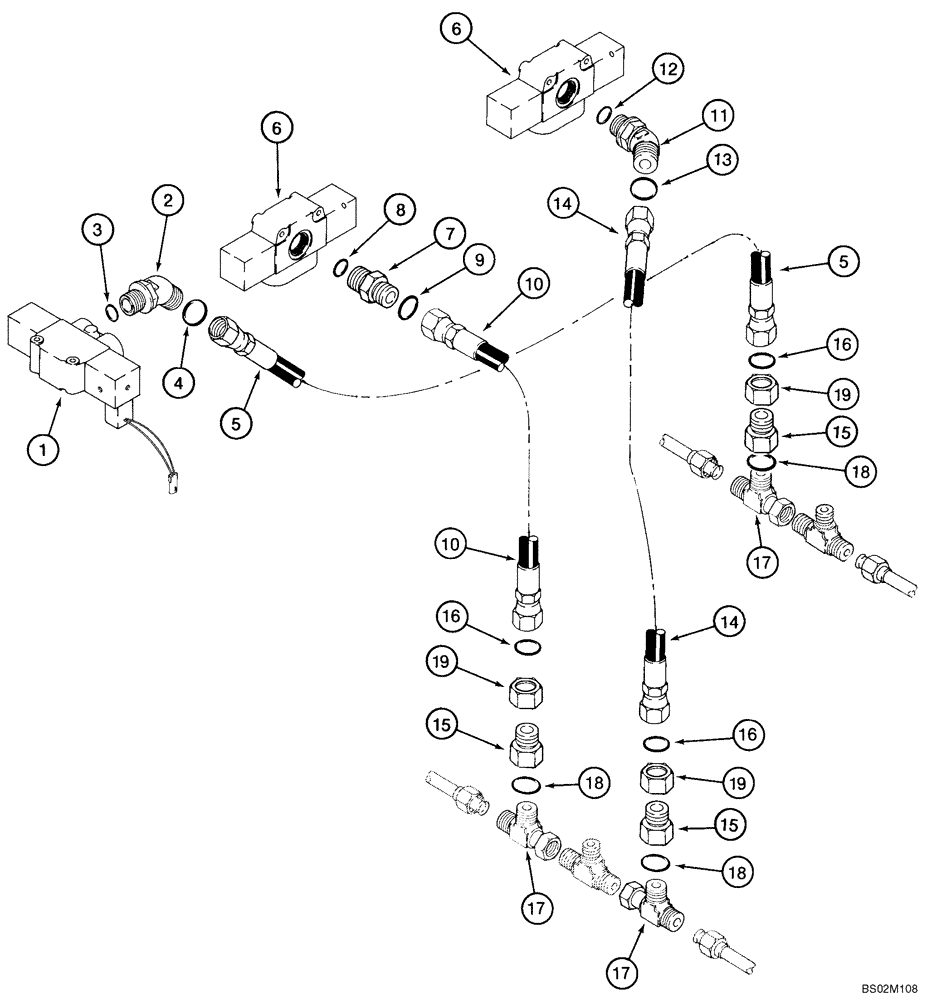

Запчасти Case 921C (08-51) - HYDRAULICS - RIDE CONTROL (May 2 2007 3:42PM) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
MASTER AND DIRECTIONAL VALVES TO LIFT TUBES
1шт.
1
107866A1
VALVE
1шт.
Master Directional
1шт.
See Figure 08-52
1шт.
2
201-351
ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
1-7/16 fc x 1-1/16
1шт.
Incl. 3, 4
1шт.
3
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
Face Seal End
1шт.
4
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
Boss End
1шт.
5
131329A2
HOSE ASSY.
648 mm (25-5/8 in)
1шт.
Cylinder Rod End
1шт.
Left Hand
1шт.
For Lift Tubes Used On Models With Ride Control, See Figure 08-07
1шт.
6
106488A2
VALVE
2шт.
Directional Control
1шт.
See Figure 08-53
1шт.
7
201-130
HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB
1шт.
Incl. 8, 9
1шт.
8
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
Face Seal End
1шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
Boss End
1шт.
10
131329A2
HOSE ASSY.
648 mm (25-5/8 in)
1шт.
Cylinder Closed End
1шт.
Right Hand
1шт.
For Lift Tubes Used On Models With Ride Control, See Figure 08-07
1шт.
11
201-351
ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
1-7/16 fc x 1-1/16
1шт.
Incl. 12, 13
1шт.
12
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
Face Seal End
1шт.
13
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
Boss End
1шт.
14
131329A2
HOSE ASSY.
648 mm (25-5/8 in)
1шт.
Cylinder Closed End
1шт.
Left Hand
1шт.
For Lift Tubes Used On Models With Ride Control, See Figure 08-07
1шт.
15
201-150
REDUCER,1 11/16"-12 Male x 2"-12 Fem, ORFS
2 sw x 1-11/16 fc
3шт.
Incl. 16
1шт.
17
201-437
TEE,2"-12 ORFS x 2"-12 Sw Run
2 fc sl x fc sl x sw fc
3шт.
Incl. 18
1шт.
For Lift Tubes Used On Models With Ride Control, See Figure 08-07
1шт.
18
238-6029
O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro
2шт.
19
203-907
TUBE NUT,2"-12 ORFS
3шт.
Выбрано товаров: 45
