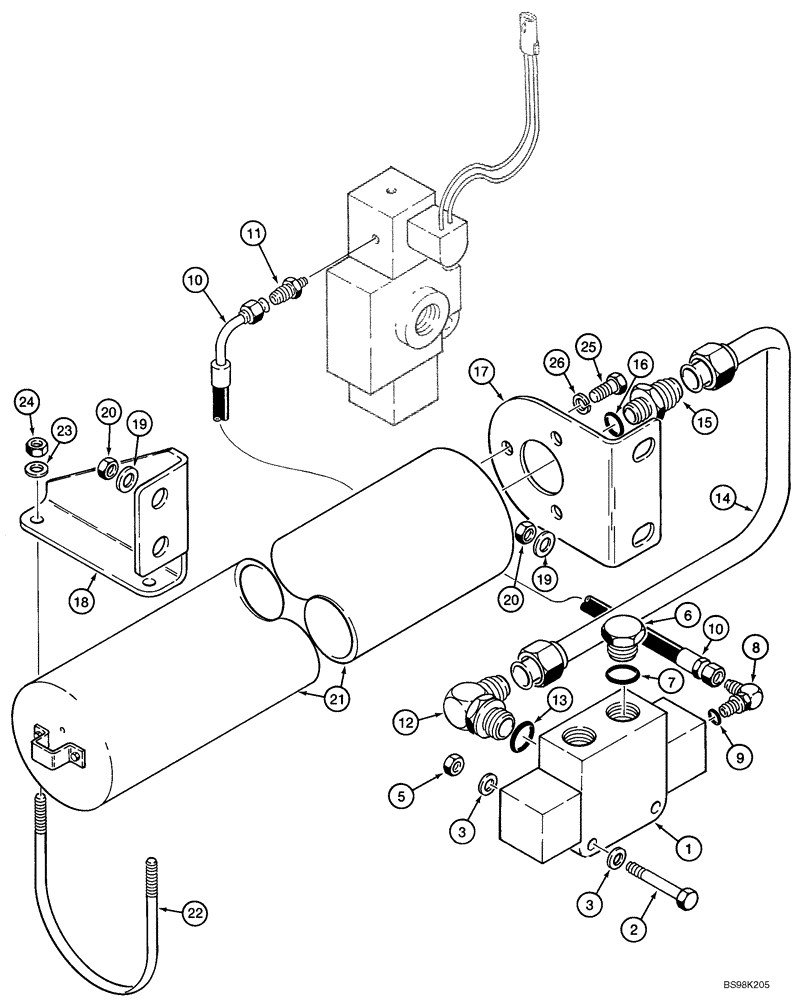

Запчасти Case 921C (08-50) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

DIRECTIONAL VALVE TO MASTER VALVE AND ACCUMULATOR

1шт.

1

106488A2

VALVE

1шт.

Directional Control

1шт.

See Figure 08-53

1шт.

2

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

3

496-41034

WASHER,.344" x 1" x .098", HDN

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

50-3561T1

FITTING

9/16 fl x 7/16 Or

1шт.

9

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

Incl. 9

1шт.

10

131235A1

HOSE ASSY.

830 mm (32-5/8 in)

1шт.

Directional Valve To Master Directional Valve

1шт.

11

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

1шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

Incl. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

131204A1

TUBE,19.04 mm OD, 284, 204 mm Length

1шт.

Directional Valve To Accumulator

1шт.

15

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

1шт.

Incl. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

87403346

BRACKET

1шт.

Accumulator

1шт.

Front

1шт.

18

87403347

BRACKET

1шт.

Accumulator

1шт.

Rear

1шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

21

130354A1

ACCUMULATOR

3.78 L

2шт.

North America Only

1шт.

If Used

1шт.

See Figure 08-54

1шт.

21

87400227

ACCUMULATOR

4 in dia

1шт.

All European Models

1шт.

North America, If Used

1шт.

Component Parts Not Available At Time Of Printing

1шт.

22

L128472

U-BOLT

1шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

24

231-1446

NUT,3/8" - 16, Gr 5

2шт.

25

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

3шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

3шт.
