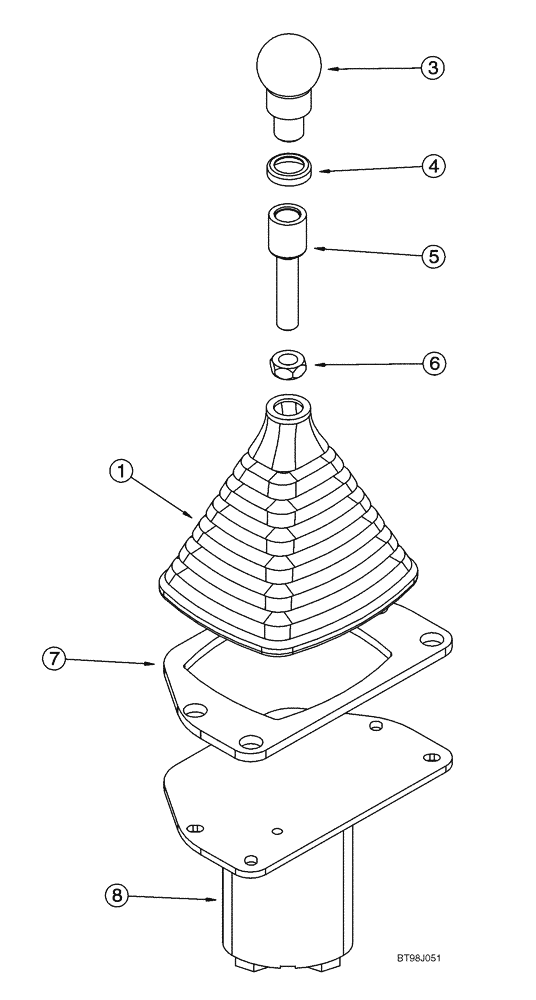

Запчасти Case 921C (08-45) - VALVE ASSY - REMOTE CONTROL, AUXILIARY (08) - HYDRAULICS

SINGLE LEVER WITH TWO SPOOL VALVE

1шт.

Also used with 292085A1 or 419639A1 single lever two spool valve. When combined, they form a dual lever four spool valve combination

1шт.

299238A1

VALVE

1шт.

Single Lever Remote, Auxiliary

1шт.

Incl. 1-8

1шт.

1

275860A1

BOOT

1шт.

3

291477A1

BALL KNOB

1шт.

4

291474A1

WASHER

1шт.

5

299184A1

PLUNGER

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

7

316777A1

GASKET

1шт.

8

240921A1

VALVE

1шт.

Remote Control, Two Spool

1шт.

See Figure 08-46

1шт.
