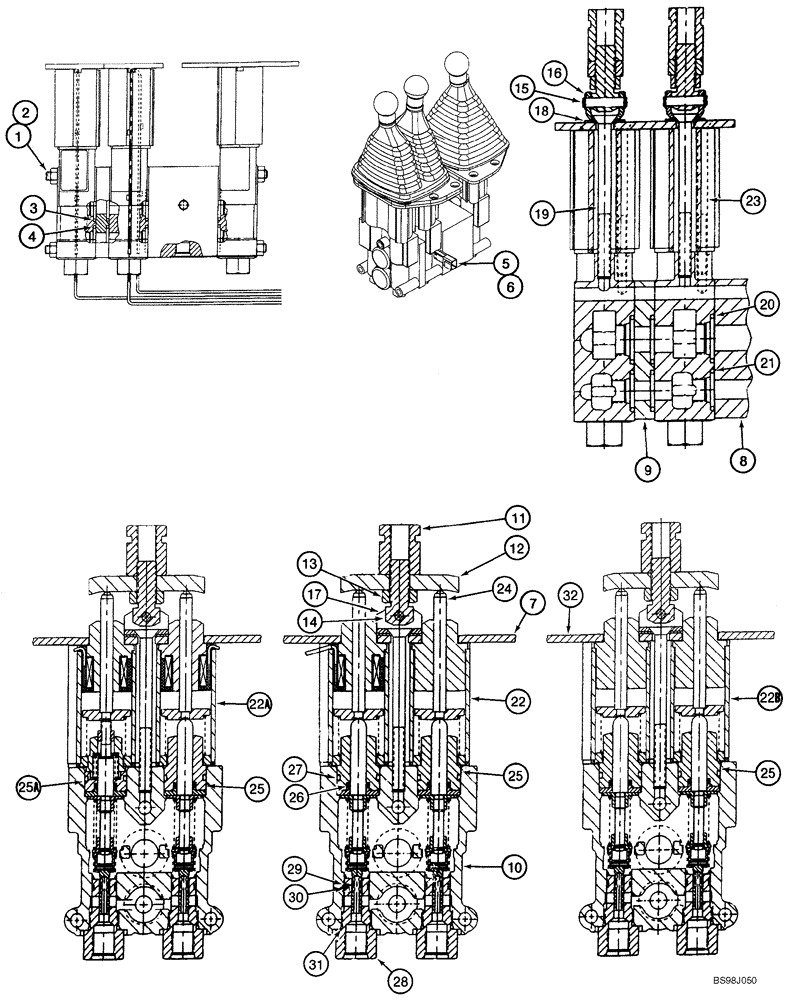

Запчасти Case 921C (08-44) - VALVE ASSY - REMOTE CONTROL, THREE LEVER (08) - HYDRAULICS

THREE LEVER WITH THREE SPOOL VALVE

1шт.

NORTH AMERICA ONLY

1шт.

291941A1

VALVE

1шт.

Remote Control

1шт.

Three Spool

1шт.

Incl. 1-32

1шт.

1

322333A1

ROD

3шт.

2

329-105

NUT,5/16"-18, G8

6шт.

3

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

4

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

5

323777A1

CONNECTOR, ELEC

CONNECTOR

1шт.

6

323776A1

WEDGE

1шт.

7

324112A1

PIVOT PLATE

1шт.

8

322365A1

VALVE BLOCK

1шт.

9

324111A1

VALVE BLOCK

1шт.

316631A1

SET OF PARTS

Bucket Section

1шт.

Ports A and C

1шт.

Incl. 10-31

1шт.

316633A1

SET OF PARTS

Lift Section

1шт.

Ports B and D

1шт.

Incl. 10-31

1шт.

318447A1

SET OF PARTS

Auxiliary Section

1шт.

Ports E and F

1шт.

Incl. 10-32

1шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

324107A1

SPECIAL NUT

1шт.

12

324106A1

PIVOT PLATE

1шт.

13

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

14

324103A1

BOLT

1шт.

15

324108A1

PIVOT PIN

1шт.

16

100-3321

SNAP RING,#X21, .185" Dia, E-Type

2шт.

17

324104A1

SUPPORT

1шт.

18

324109A1

SHIM

1шт.

19

324105A1

HEX SOC SCREW

1шт.

20

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

21

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

22

324098A1

MAGNET

1шт.

316631A1 Bucket Section

1шт.

Component Parts Not Serviced Separately

1шт.

22a

324099A1

MAGNET

1шт.

316633A1 Lift Section

1шт.

Component Parts Not Serviced Separately

1шт.

22b

324493A1

MAGNET

1шт.

318447A1 Auxiliary Section

1шт.

Component Parts Not Serviced Separately

1шт.

23

324110A1

SCREW

2шт.

24

324102A1

PLUNGER

2шт.

Component Parts Not Serviced Separately

1шт.

25

323768A1

PLUNGER

1шт.

Cartridge

1шт.

Two Used In 316631A1 Bucket Dump and Rollback Section

1шт.

One Used In 316633A1 Lift Raise Section

1шт.

Two Used In 318447A1 Auxiliary Section

1шт.

Component Parts Not Serviced Separately

1шт.

For Service of External O-Ring and Spool Seal, Order 3

1шт.

25a

323769A1

PLUNGER

1шт.

One Used In 316633A1 Lift Float Section

1шт.

Cartridge

1шт.

Component Parts Not Serviced Separately

1шт.

For Service of External O-Ring and Spool Seal

1шт.

Order 323915A1 Kit

1шт.

Incl. 323915A1, 26, 27

1шт.

323915A1

SET OF PARTS

Seal

1шт.

Incl. 26, 27

1шт.

26

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

1шт.

Spool

1шт.

27

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

28

323766A1

VALVE

2шт.

Component Parts Not Serviced Separately

1шт.

For Service of External Seals

1шт.

Order 323913A1 Kit

1шт.

Incl. 323913A1, 29-31

1шт.

323913A1

SEAL KIT

Seal

1шт.

Incl. 29-31

1шт.

29

323921A1

RING

1шт.

30

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

31

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

32

324312A1

LARGE PLATE

PLATE, LARGE

1шт.

318447A1 Auxiliary Section Only

1шт.
