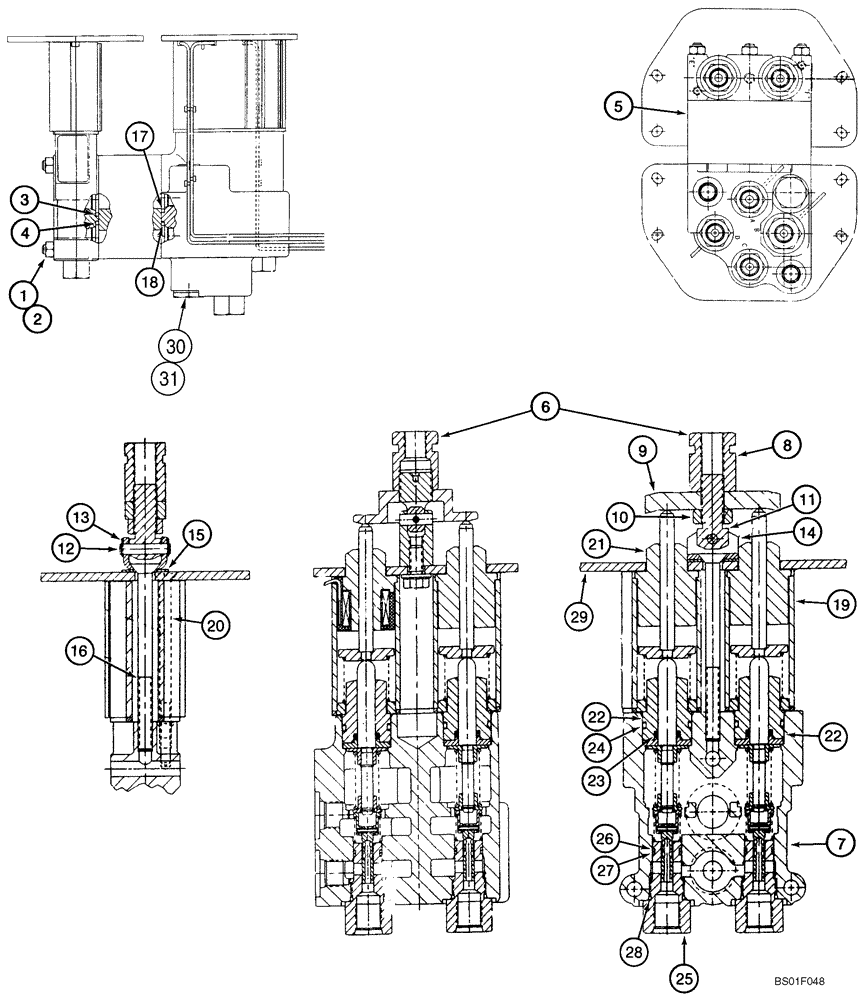

Запчасти Case 921C (08-42) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER (08) - HYDRAULICS

DUAL LEVER WITH THREE SPOOL VALVE

1шт.

291088A1

VALVE

1шт.

Remote Control

1шт.

Three Spool

1шт.

Incl. 1-31

1шт.

If Used

1шт.

428374A1

VALVE

1шт.

Remote Control

1шт.

Three Spool

1шт.

Incl. 1-31

1шт.

If Used

1шт.

1

322399A1

ROD

3шт.

2

329-105

NUT,5/16"-18, G8

3шт.

3

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

4

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

3шт.

5

322398A1

VALVE BLOCK

1шт.

6

275924A1

VALVE

1шт.

Two Spool

1шт.

See Figure 08-37

1шт.

For Component Parts

1шт.

Used With 291088A1

1шт.

6

428373A1

VALVE

1шт.

Two Spool

1шт.

See Figure 08-37

1шт.

For Component Parts

1шт.

Used With 428374A1

1шт.

318447A1

SET OF PARTS

1шт.

Auxiliary Section

1шт.

Ports E and F

1шт.

Incl. 7-29

1шт.

7

NSS

NOT SOLD SEPARAT

Housing

1шт.

8

324107A1

SPECIAL NUT

1шт.

9

324106A1

PIVOT PLATE

1шт.

10

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

11

324103A1

BOLT

1шт.

12

324108A1

PIVOT PIN

1шт.

13

100-3321

SNAP RING,#X21, .185" Dia, E-Type

2шт.

14

324104A1

SUPPORT

1шт.

15

324109A1

SHIM

1шт.

16

324105A1

HEX SOC SCREW

1шт.

17

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

18

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

19

324493A1

MAGNET

1шт.

Component Parts Not Serviced Separately

1шт.

20

324110A1

SCREW

2шт.

21

324102A1

PLUNGER

2шт.

Component Parts Not Serviced Separately

1шт.

22

323768A1

PLUNGER

2шт.

Component Parts Not Serviced Separately

1шт.

For Service of External O-Ring and Spool Seal

1шт.

Order 323915A1 Kit

1шт.

Incl. 323915A1, 23, 24

1шт.

323915A1

SET OF PARTS

Seal

1шт.

Incl. 23, 24

1шт.

23

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

Spool

1шт.

24

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

25

323766A1

VALVE

2шт.

Component Parts Not Serviced Separately

1шт.

For Service of External Seals

1шт.

Order 323913A1 Kit

1шт.

Incl. 323913A1, 26-28

1шт.

323913A1

SEAL KIT

Seal

1шт.

Incl. 26-28

1шт.

26

323921A1

RING

1шт.

27

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

28

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

29

324312A1

LARGE PLATE

PLATE, LARGE

1шт.

30

86512512

PLUG,7/8" - 14 ORB

1шт.

Incl. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
