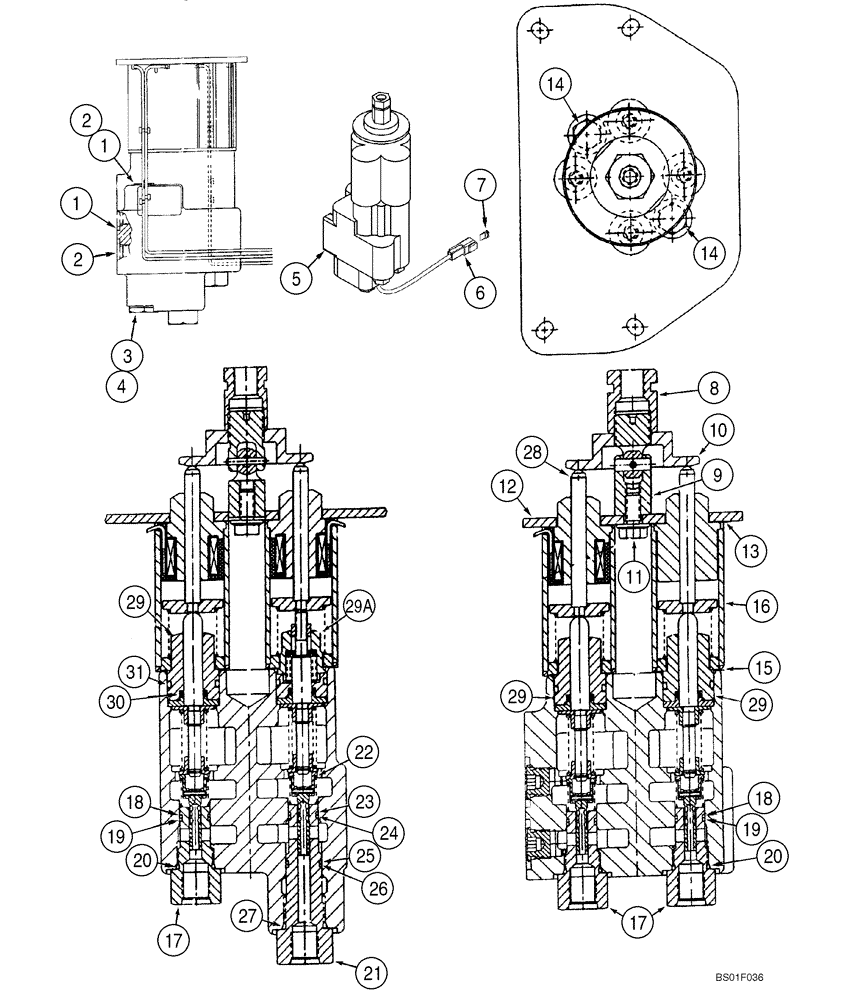

Запчасти Case 921C (08-37) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS

SINGLE LEVER WITH TWO SPOOL VALVE

1шт.

275924A1

VALVE

1шт.

Remote Control

1шт.

Two Spool

1шт.

Incl. 1-31

1шт.

If Used

1шт.

428373A1

VALVE

1шт.

Remote Control

1шт.

Two Spool

1шт.

Incl. 1-31

1шт.

If Used

1шт.

1

9625178

PLUG,9/16" - 18 ORB

3шт.

Incl. 2

1шт.

3

86512512

PLUG,7/8" - 14 ORB

1шт.

Incl. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

323777A1

CONNECTOR, ELEC

CONNECTOR

1шт.

7

323776A1

WEDGE

1шт.

8

323771A1

SPECIAL NUT

1шт.

Used With 275924A1

1шт.

8

428313A1

NUT

1шт.

Used With 428373A1

1шт.

9

323773A1

COUPLING JOINT

1шт.

10

323774A1

PIVOT PLATE

1шт.

11

323787A1

SERRATED SCREW

1шт.

12

323775A1

LARGE PLATE

PLATE, LARGE

1шт.

Used With 275924A1

1шт.

12

434729A1

PLATE

1шт.

Used With 428373A1

1шт.

13

323779A1

GASKET,0.46mm Thk

1шт.

Upper

1шт.

14

323788A1

SCREW

2шт.

15

323781A1

GASKET,4.78mm Thk

1шт.

Lower

1шт.

16

323778A1

MAGNET

1шт.

Component Parts Not Serviced Separately

1шт.

17

323766A1

VALVE

3шт.

Component Parts Not Serviced Separately

1шт.

For Service of External Seals

1шт.

Order 323913A1 Kit

1шт.

Incl. 18-20

1шт.

323913A1

SEAL KIT

Seal

1шт.

Incl. 18-20

1шт.

18

323921A1

RING

1шт.

19

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

20

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

21

323767A1

VALVE

1шт.

Component Parts Not Serviced Separately

1шт.

For Service of External Seals

1шт.

Order 323914A1 Kit

1шт.

Incl. 22-27

1шт.

323914A1

SEAL KIT

Seal

1шт.

Incl. 22-27

1шт.

22

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

1шт.

23

323921A1

RING

1шт.

24

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

25

238-8016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 8, 90 Duro

1шт.

26

323920A1

RING

1шт.

27

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

28

323770A1

PLUNGER

4шт.

Component Parts Not Serviced Separately

1шт.

29

323768A1

PLUNGER

3шт.

Two Used In Bucket Dump and Rollback Section

1шт.

One Used In Lift Raise Section

1шт.

Cartridge

1шт.

Component Parts Not Serviced Separately

1шт.

For Service of External O-Ring and Spool Seal, Order 323915A1 Kit

1шт.

Incl. 323915A1, 30, 31

1шт.

29a

323769A1

PLUNGER

1шт.

One Used In Lift Float Section

1шт.

Cartridge

1шт.

Component Parts Not Serviced Separately

1шт.

For Service of External O-Ring and Spool Seal

1шт.

Order 323915A1 Kit

1шт.

Incl. 323915A1, 30, 31

1шт.

323915A1

SET OF PARTS

Seal

1шт.

Incl. 30, 31

1шт.

30

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

1шт.

Spool

1шт.

31

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
