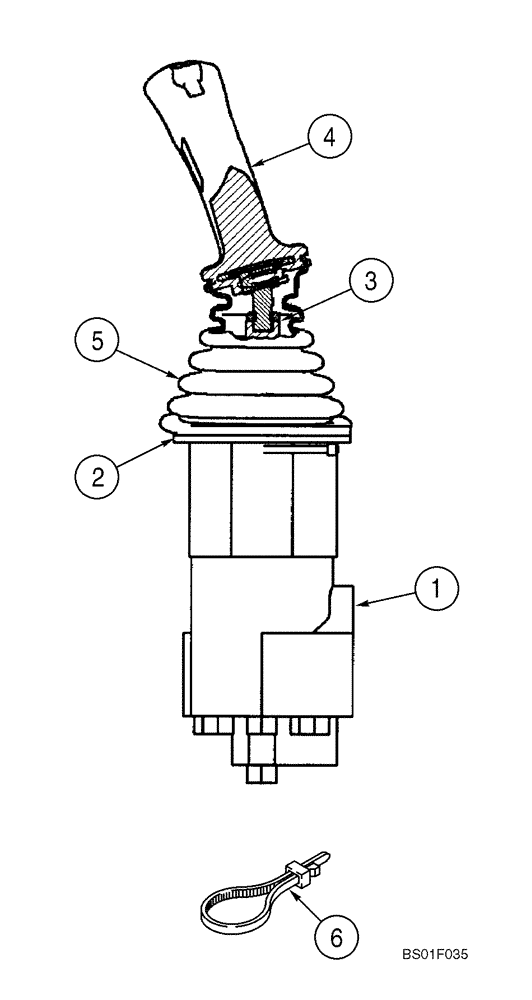

Запчасти Case 921C (08-36) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS

SINGLE LEVER WITH TWO SPOOL VALVE

1шт.

If Used

1шт.

Also used with 299238A1 single lever two spool valve. When combined, they form a dual lever four spool valve combination

1шт.

419639A1

VALVE

1шт.

Single Lever Remote

1шт.

Incl. 1 - 6

1шт.

1

428373A1

VALVE

1шт.

Remote Control

1шт.

See Figure 08-41

1шт.

2

316777A1

GASKET

1шт.

3

829-4412

NUT,Thin, M12 x 1.75, Cl 5

1шт.

4

428265A1

HANDLE

1шт.

87588665R

REMAN-JOYSTICK

821C, 921C BOTH CASE WHEEL LOADER (S/N JEE0155001 & AFTER), Reman for New P/N 428265A1

1шт.

87588665C

CORE-JOYSTICK

Return Number

1шт.

5

414321A1

BOOT

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.
