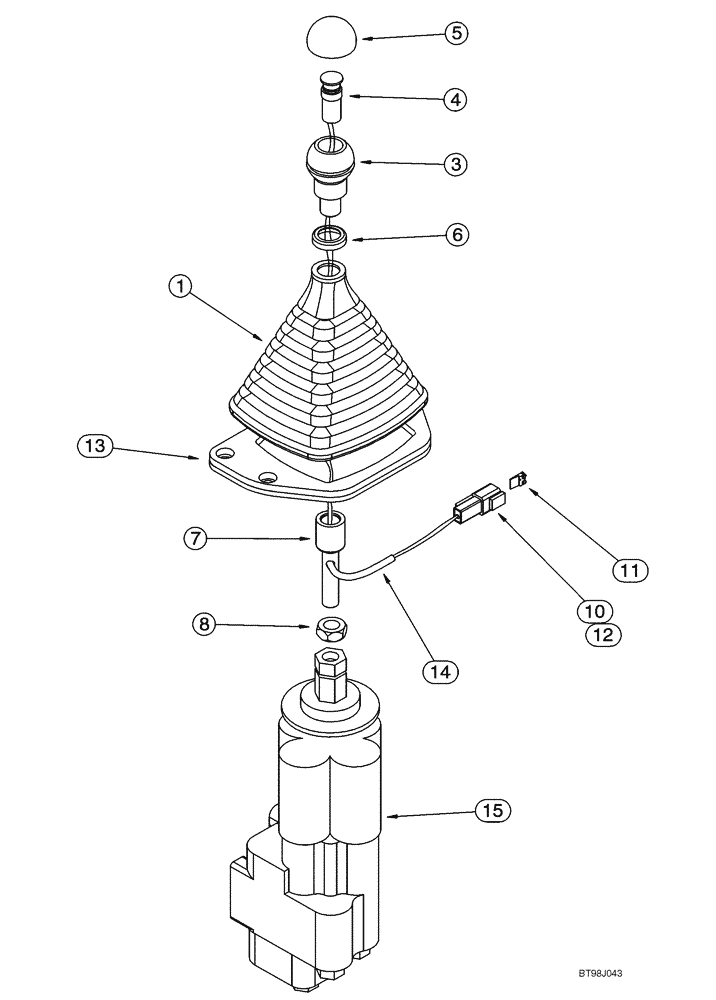

Запчасти Case 921C (08-35) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS

SINGLE LEVER WITH TWO SPOOL VALVE

1шт.

If Used

1шт.

Also used with 299238A1 single lever two spool valve. When combined, they form a dual lever four spool valve combination

1шт.

292085A1

VALVE

1шт.

Single Lever Remote

1шт.

Incl.1-15

1шт.

1

275860A1

BOOT

1шт.

3

291478A1

BALL KNOB

1шт.

4

291475A1

IGNITION SWITCH

1шт.

Push Button

1шт.

Kickdown

1шт.

5

291476A1

BOOT

1шт.

Switch

1шт.

6

291474A1

WASHER

1шт.

7

299184A1

PLUNGER

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

11

225318C1

ELEC CONNECTOR,2 Pin

1шт.

12

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

2шт.

13

316777A1

GASKET

1шт.

14

330134A1

HEATER TUBE,4.75 mm ID

1шт.

Heat Shrink

1шт.

Kickdown Switch Wires

1шт.

15

275924A1

VALVE

1шт.

Remote Control

1шт.

Two Spool

1шт.

See Figure 08-37

1шт.
